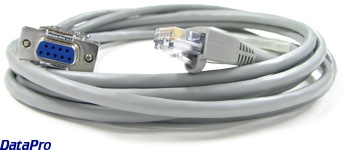

The DataPro 1675 series cable is
a replacement for the Cisco 675
or Cisco 678 Management Cable.
This cable is also referred to as a
"Cisco Console Management Cable".
This cable has an RJ45 connector
on the Cisco 675/678 router end,
and a DB09F RS232 connector on the
PC COM port end.
This cable is designed to allow you
to program and update your Cisco
675 or 678 router via HyperTerminal
or a similar application. Just plug
the RJ45 end of the cable into the
Cisco port marked "MGMT", and the
9-pin end into your PC COM port.
Custom lengths are available.
If your PC has a 25-pin (DB25) COM port,
you can use this cable together with
our 1031-MF serial adaptor.
The connectors are: DB09F and RJ45M.
Connector Diagrams: DB09F and RJ45M.
Here are the instructions for setting up a Cisco 678
in bridging mode for your DSL connection to your ISP.
|
