DisplayPort Dual Panel-Mount F/F Cable


Categories:
> Digital Video Panel-Mount Cables, DisplayPort Cables
DisplayPort Dual Panel-Mount F/F Cable

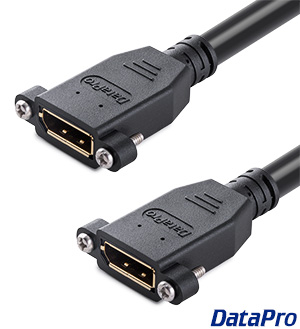

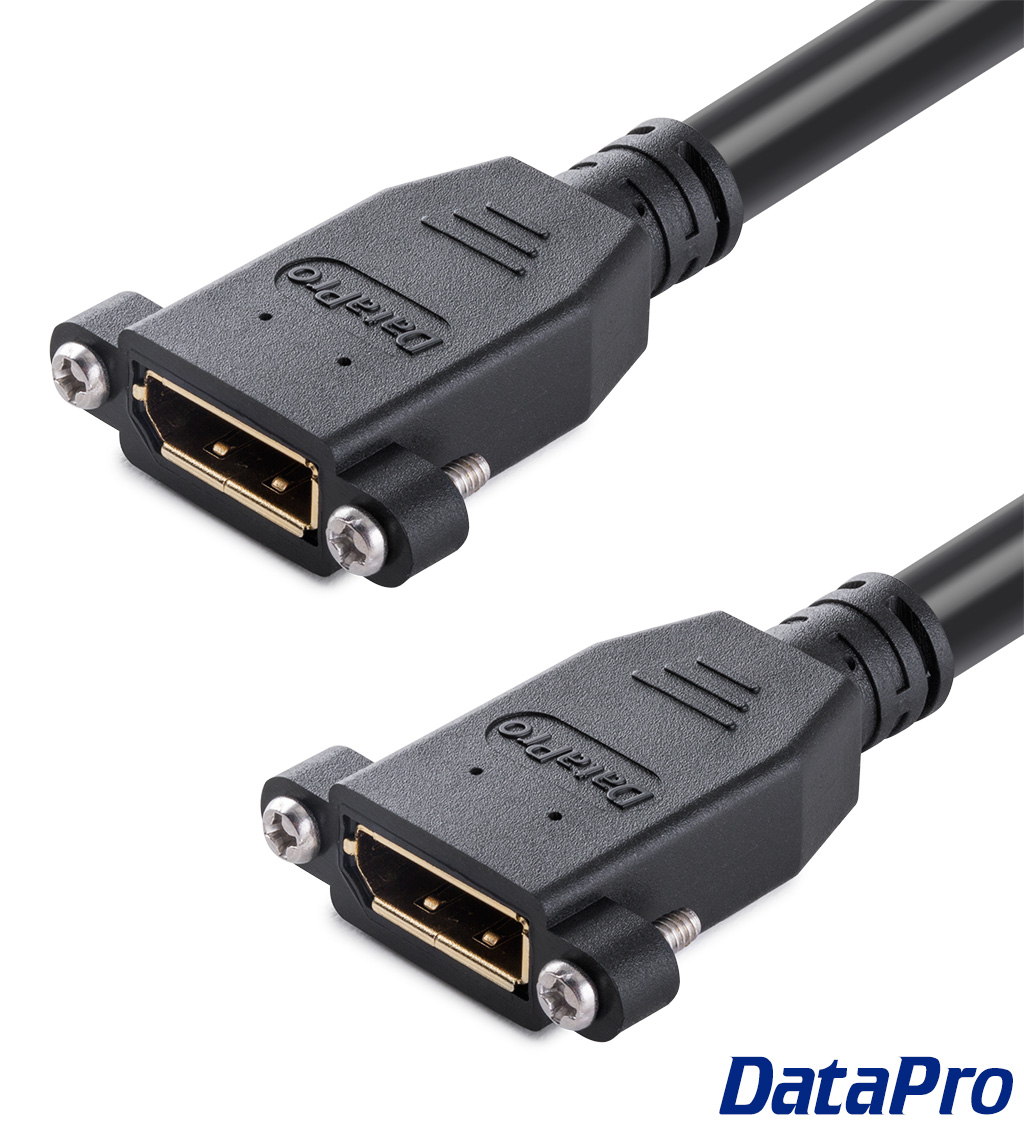

This DisplayPort cable features a panel-mount female connector on each end, allowing it to span between two plates, panels, or bulkheads.

1177-01C   DisplayPort Dual Panel-Mount   1 ft $ 30.95   818 in stock   Add to Cart
1177-02C   DisplayPort Dual Panel-Mount   2 ft $ 31.95   348 in stock   Add to Cart
1177-03C   DisplayPort Dual Panel-Mount   3 ft $ 32.95   388 in stock   Add to Cart
1177-04C   DisplayPort Dual Panel-Mount   4 ft $ 33.95   309 in stock   Add to Cart
1177-06C   DisplayPort Dual Panel-Mount   6 ft $ 35.95   189 in stock   Add to Cart
1177-10C   DisplayPort Dual Panel-Mount   10 ft $ 39.95   89 in stock   Add to Cart

This DisplayPort cable features a panel-mount female connector on each end, allowing it to span between two plates, panels, or bulkheads, or serve as a flexible panel interface. Perfect for test setups, project boxes, and remote interfaces.

These cables are CL2-rated for in-wall use, and feature 28 AWG wire, allowing for 4K UHD quality.

DataPro's panelmount DisplayPort connectors are guaranteed compatible with our DisplayPort Wall Plates and anything made with our Online Plate Creator.


Drawings & Models:

PartDownloads
1177PDF Drawing (PDF)STEP Model (STEP)


RoHS Compliant
REACH Compliant
CL2 In-Wall Rated
2560x1600 Capable
4K UHD Capable

Related Products:

Features:

  • CL2 rated for in-wall use
  • Includes mounting hardware
  • Gold-plated contacts
  • Shielded against RFI and EMI interference


Specifications:

  • 2x Panel-Mount Female DisplayPort Connector
  • Supports resolutions up to 4K UHD @ 60Hz
  • Wire Gauge 28 AWG
  • RoHS Compliant
  • CL2 rated
  • Embedded 4-40 nuts with mounting screws included
  • Allowable panel depth: 2.5mm (full mating)
  • Recommended screw installation: hand tighten, 2.0 in-lbs maximum torque
