Ethernet 10/100 24-Way RackMnt

EHN0-24R   Ethernet 10/100 Rackmnt Switch   24P $ 59.00   7 in stock   Add to Cart

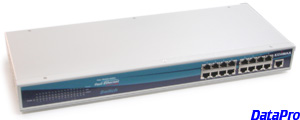

The EHN0-24R is a dual-speed 10/100 IEEE-802.3u-compliant Ethernet hub and switch for mounting on a rack.

A switch performs all the functions of a hub, plus provides traffic management (auto-partitioning) services for a Local Area Network, which greatly improves efficiency and throughput while reducing collisions and packet loss.

There are a total of 24 Dual-speed auto-sensing ports, each with an RJ45 connection.


  • N-Way switching provides traffic management.
  • Operates at maximum packet filtering and forwarding rate.
  • Support for Store-and-Forward of packet switching.
  • Support for MDI-II connector for easy expansion.
  • 512K per device RAM buffer.
  • EIA-19 rack mountable.
  • Compact design with external power supply.
  • One-Year replacement warranty.


  • Standards: IEEE-802.3 Ethernet, IEEE-802.3u 100-Base-TX Fast Ethernet, ANSI/IEEE-802.3u N-Way Auto-Negotiation.
  • Certifications: FCC, UL, CE, CSA, C-tick, VCCI
  • Protocol: CSMA/CD
  • Transmission Rate: 10 or 100 Mbps (auto-detection)
  • Packet Forwarding: 10-Base-T: 14,880 pps per port, 100-Base-TX: 148,800 pps per port
  • Connection Ports: 24 STP ports and 1 Uplink port
  • Diagnostic LEDs: Link/Activity for each port and Partition for each port and Power indicator.
  • Dimensions(mm): 171 x 100 x 28 mm
  • Weight: 460 grams (1.15 pounds).
  • Power: Internal Switching Power: 100-200 VAC, 50/60Hz
    Maximum Power consumption: 18 watts.
