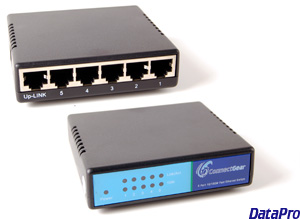

Ethernet 10/100 5-Way Switch

The EHN0-05E is a dual-speed 10/100 Mbps IEEE-802.3u compliant, Ethernet N-Way switch and hub.

A switch performs all the functions of a hub, plus provides traffic management using auto-partitioning services for a Local Area Network, which greatly enhances network throughput.

There are a total of 5 Dual-speed auto-sensing ports and one Uplink port, each with an RJ45 connection.

A more complete description of this product, as well as a discussion of switching technology, can be found in our Switches White Paper.

Features:

· N-Way switching provides traffic management.

· Operates at maximum packet filtering and forwarding rate

· Support for Store-and-Forward of packet switching

· Support for MDI-II connector for easy expansion.

· 512K per device RAM buffer.

· Compact design with external power supply.

· One-Year replacement warranty.

Specifications:

• Standards: IEEE-802.3 Ethernet IEEE-802.3u 100-Base-TX Fast Ethernet ANSI/IEEE-802.3u N-Way Auto-Negotiation.

• Certifications: FCC, UL, CE, CSA, C-tick, VCCI

• Protocol: CSMA/CD

• Transmission Rate: 10 Mbps or 100 Mbps (auto-detection)

• Packet Forwarding: 10-Base-T: 14,880 pps per port 100-Base-TX: 148,800 pps per port

• Connection Ports: 5 STP ports and 1 Uplink port

• Diagnostic LEDs: Link/Activity for each port and Partition for each port and Power indicator.

• Dimensions(mm): 171 x 100 x 28 mm

• Weight: 460 grams (1.15 pounds).

• Power: Internal Switching Power: 100-200 VAC, 50/60Hz Maximum Power consumption: 18 watts.
