Faceplate VGA and Triple RCA


Categories:
> VGA Wall Plates, RCA & Audio Wall Plates
Faceplate VGA and Triple RCA


703R3A   Faceplate VGA + RCA x 3 AlumA   EACH $ 9.95   14 in stock   Add to Cart
703R3W   Faceplate VGA + RCA x 3 White   EACH $ 9.95   10 in stock   Add to Cart
703R3Y   Faceplate VGA + RCA x 3 Ivory   EACH $ 9.95   13 in stock   Add to Cart

Technical Documents
I agree to the Terms of Service.

Download Drawing

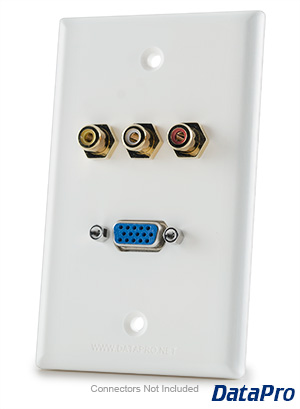

With cutouts for one VGA port and three RCA ports, this simple wall plate is the perfect conclusion to an in-wall or ceiling wiring run. It's perfect for mounted projectors, A/V labs, and presentation rooms like lecture halls and conference rooms. And because the attachments are customizable, it can serve a number of different purposes, just for you!

With a D-Sub cutout, this plate is designed to mount a VGA coupler or panelmount cable to provide computer video display. While DVI and DisplayPort are the popular digital options, nothing has the distance and strength of VGA. For in-wall runs and anything over 15 feet, VGA is still the preferred method of computer video.

With three RCA cutouts, this plate can be used for either Composite Audio/Video or Component Video. When fitted with Yellow, White, and Red jacks, the trio represents one video channel and two audio channels for a complete stereo package. When fitted with Green, Blue, and Red jacks, the trio represents three separated video signals for Y/Pb/Pr (or Y/Cb/Cr) component video.

Just as DVI supplants VGA and HDMI supplants Component in many circles, those digital signals just can't compete on distance and therefore Component is still the best way to run long-distance video from a DVD player, Blu-Ray player, or other video source.

Please note that the plates do not include any connectors or cables. We offer cables separately in various lengths according to your needs, so you will be given the opportunity to select your mounting options after adding this plate to your order.


Specifications:

  • Dimensions: 2.75" x 4.50" x 0.23" (70mm x 114mm x 6mm)
  • Mounting Thickness: 0.10" (2.5mm)
  • Available in: White, Ivory, Anodized Aluminum
  • Can be specially built in: Black, Brown, Gray, Red, Steel, Brass, Bronze (Minimum orders and additional production time may apply)
  • These ports can also be cut on any custom wall plate
