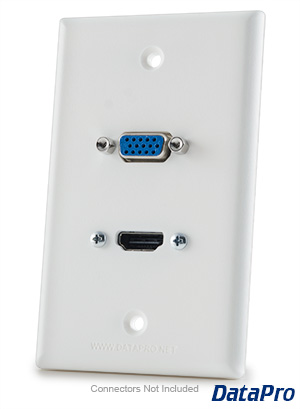

HDMI and VGA Wall-Plate

The DataPro 7030H HDMI and VGA/DB9 wall-plate allows you to easily set up a remote docking station for your projector, HDTV, or other display. Alternatively, you can run digital video and DB9 serial to monitor and control an RS232 serial-enabled device, such as an AV receiver. This is a standard single-gang wall plate that will eliminate messy cables and gaping holes, providing you with a clean, good-looking wiring solution.

Useful for accessing a machine from any place in your home, this plate provides a standard HDMI type-A hole and a standard D-Sub-15 sized hole to allow you to see the desktop of a remote computer or video of a Blu-ray/DVD player connected through your wall. The openings are sized for standard panel-mount (or bulkhead-mount) connectors (not included).

Please note that the plates do not include any connectors or cables. We offer panel-mount HDMI cables and panel-mount VGA cables separately in various lengths to match your design needs.

For information about selecting, installing, and using wall plates in your applications, see our Guide to Face Plates.

Specifications:

• Dimensions: 2.75" x 4.50" x 0.23" (70mm x 114mm x 6mm)
• Mounting Thickness: 0.10" (2.5mm)
• Available in: White, Anodized Aluminum
• Can be custom-cut in: Ivory, Black, Brown, Gray, Red, Steel, Brass, Bronze (Minimum orders and additional production time may apply)
• These ports can also be cut on any custom wall plate
