HDMI Switch with Component Video


MDV-106   Component & HDMI 3-Way Switch   EACH $ 249.00   3 in stock   Add to Cart

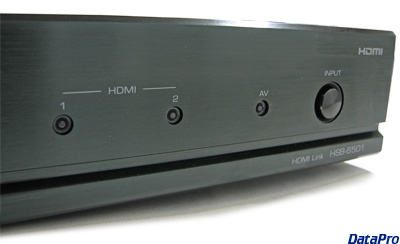

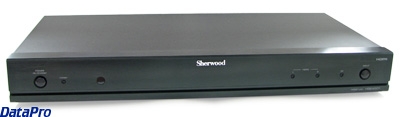

DataPro's Component & HDMI switch is a professional-quality video convertor and switch for high-definition component video and digital HDMI video. It features two HDMI video/audio inputs and one Y/Pb/Pr input with TOSLink, and outputs full HD-resolution HDMI.

This attractive unit covers both the functions of a 2x1 HDMI switch and an analog-to-digital convertor, offering a single solution to HDMI and analog video switching. It is HDCP-compliant and outputs high definition resolutions up to 1080i.

This type of unit is ideal for setups where it is impractical or inconvenient to switch the input source on a display, because the burden of source selection is transferred to the switch. With the incorporated analog-digital transcoder, mixed sources can all be rendered to the display without direct interaction with the display itself.

With the use of HDMI to DVI cables, this product can also support DVI sources and/or displays at supported resolutions. For this reason, the switch also features an optical audio out via TOSLink.

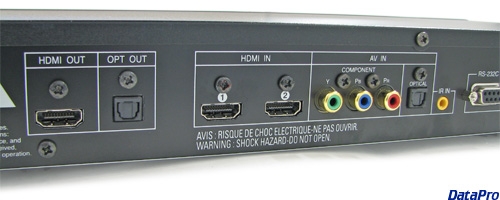

  • Video In: HDMI 1.1 (x2); Component (RCA x3)
  • Video Out: HDMI 1.1
  • Audio In: TOSLink Optical
  • Audio Out: TOSLink Optical
  • Supported Resolutions: 480i, 480p, 720p, 1080i
  • HDCP Compliant on all HDMI ports
  • Includes an HDMI cable
  • Power Usage: 3W 120V ~ 60Hz
  • Dimensions: 440x55x233mm
  • Weight: 5 lbs
