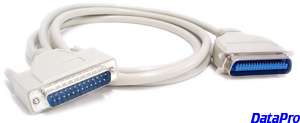

The DataPro 1001 series Parallel Printer
Cable for the IBM-PC and compatibles is
an attractive, high-quality molded cable.
The CPU side has a DB25M connector; the
printer side has a Centronics (Amphenol)
36 pin male connector with wire bale clips.
The DB25 end has slotted thumbscrews.
The 'B' type cable we stock also supports
BiDirectional signal flow, also known as
BiTronics compatible; however, it is not
IEEE-1284 compliant.
We also build this cable in any length you require.
With modern computer equipment, there should be no
signal loss out to 50 Feet or so. However, this
does vary depending on the quality of your computer
and printer.
For IEEE-1284 compliant printer cables, see our
1284AA, 1284AB, 1284AC, and 1284CB type cables.
For connecting a parallel port to a data switch,
see our 1012 series cables.
The connectors are: DB25M and CN36M.
Connector Diagrams: DB25M and CN36M.
|
