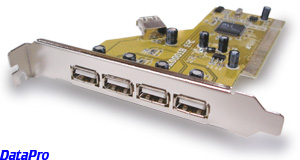

The USB 2.0 controller card will
allow a Windows 98/2000/ME/XP PC
or a Apple Macintosh (version 8.6
or newer) with PCI bus to connect
USB 2.0 devices via the USB port.
Simply insert the card into an
empty PCI slot on the motherboard
and plug a USB cable from the device
into an empty USB port on the card.
This card is backwards compatible
enabling it to control both USB 1.1
and USB 2.0 compatible devices
connected to your system.
For a two-port version of this card,
see our P/N UC2-PCI-2.
Device Features:
· Allows connectivity of USB 2.0 devices.
· Backwards compatible with USB 1.1 devices.
· 5 USB 2.0 type A ports (four external and one internal).
USB Features:
· Full Compliance with USB Specifications, Rev. 1.1 and 2.0.
· Supports high speed transfer rates of up to 480 Mbps.
Software Features:
· Auto-installation drive via plugging USB connector
into the USB port.
· Fully Plug-N-Play compatible driver.
· Drivers for Windows SE/ME/2000/XP included in operating system.
· Backwards compatible with generic NEC USB-to-PCI Windows drivers.
· File System transparent.
|
