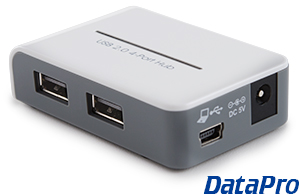

The UH-144V2 is a Universal Serial
Bus (USB) 2.0 hub, which is a USB
cable concentrator and a bridge
between a PC USB Host Controller
and USB devices.
UH-144V2 is a full speed USB 2.0 hub.
UH-144 provides one upstream port and
five downstream ports to the user.
It supports both full speed (12M bps)
and low speed (1.5M bps) devices, such
as keyboard, mouse, joystick, etc.
UH-144 provides both self-powered and
bus-powered modes. It has per-port
overcurrent detection LEDs, as well as
per-port power ready LEDs.
System Requirements:
1. Windows 95 OSR 2.0 or Windows 98, Apple MAC with USB.
2. Host PC must include USB Controller card.
Features:
· Supports both OHCI and UHCI Interfaces.
· Four Downstream ports
· Supports both Self-powered and Bus-powered modes,

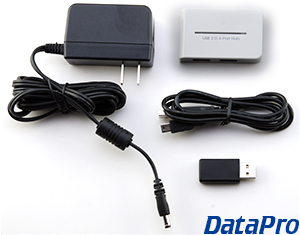

via included power adaptor or USB upstream.
· Per-port overcurrent detection and protection.
· Per-Port power ready and overcurrent LED indicators.
· Plug & Play compatible device.
· Supports Hot-Swappable devices.
Specifications:
Upstream ports: 1
Downstream ports: 4
Per-port Output: DC+5v 500ma (adaptor included)
Enclosure: Plastic
External Power: DC+6v 2 amps
Weight: 100 grams
Dimensions: 130mm (L) x 70mm (W) x 224mm (H)
|
