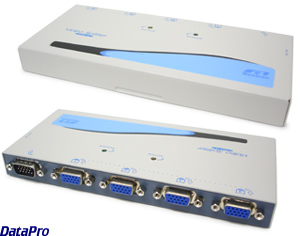

The MSV-104A VGA Splitter/Booster
allows a single PC to drive up to
four VGA monitors a distance of
up to 165 feet, with the use of
appropriate video-grade cabling.
There is no software to install and no
problems with software compatibility.
A North-American style 110-volt power
supply is included. The unit also
features a power-save mode when no
VGA input signal is detected.
The MSV-104A is the deluxe model of
the MSV-104 line. It includes
additional features such as a 350MHz
signal bandwidth, a higher maximum
resolution, a longer range, and a
power-saving mode. It is also
lighter, more compact, and more
asthetically-pleasing.
Related Products:
· MSV-104B (Economy)
· MSV-102A (1:2 Premium)
· MSV-102C (1:2 Economy)
· MSV-102E (1:2 Mounting)
· MSV-108A (1:8 Premium)
· MSV-108B (1:8 Economy)
· DataPro Video-Grade Cables
Cables Required:
from CPU from Monitors
-------- -------------
Video 1150-xx NONE
Specifications:
--------------
Device #1: CPU IBM-PC with VGA/SVGA/XGA video card
Device #2: up to 4 units VGA/SVGA/XGA analog monitors
I/O Interface: TTL Compatible: Horz & Vert Sync
Analog Signal: RED, GRN, & BLU video
Maximum Resolution: 1920 x 1440 @ 70 Hz
Video Bandwidth: 350 MHz
Transmit Distance: 65M (210F)
Input Connectors: from CPU: DH15M
Output Connectors: to monitors: DH15F x 4
Power Supply: DC 9v, 200 mA (normal operation)
10 mA (power-saving mode)
Enclosure: Metal
Weight: 428 grams
Dimensions: L = 180 mm
W = 85 mm
H = 20 mm
|
