VGA & Dual PS2 Horizontal Plate


Categories:
> Horizontal Wall Plates, VGA Wall Plates, PS2 & Parallel Wall Plates
VGA & Dual PS2 Horizontal Plate




73366A   Faceplate VGA/PS2/PS2 AlumA   EACH $ 9.95   2 in stock   Add to Cart
73366B   Faceplate VGA+PS2+PS2 Black   EACH $ 9.95   2 in stock   Add to Cart

Technical Documents
I agree to the Terms of Service.

Download Drawing

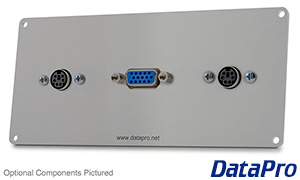

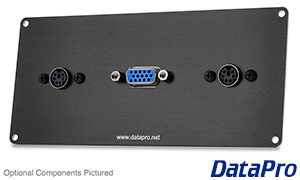

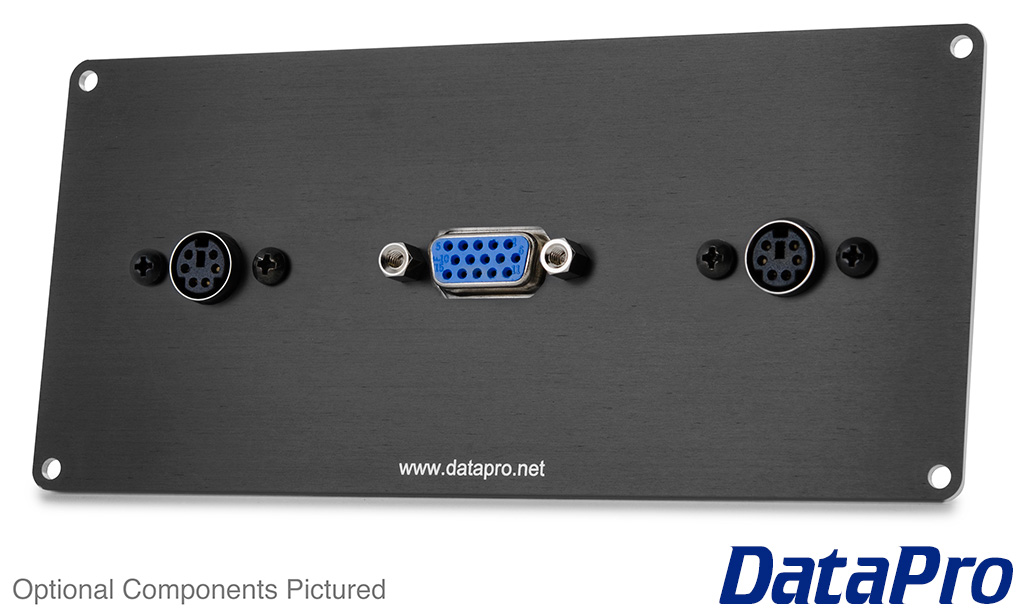

The DataPro 73366 PS2 & VGA/DB9 panel is a mounting wall plate that will eliminate messy cable holes, providing a clean, good-looking wiring solution for routing VGA and PS2 connections.

Useful for accessing a machine from a physically-separated location, this panel combines VGA and PS2 for seeing and typing on the connected machine. With VGA for an analog video monitor, and two PS2 ports for keyboard and mouse, a complete user console can be relocated to wherever is suitable for your situation. On the other side, another of these plates could also be used to connect the machine to the in-wall wiring.

The port cutouts are sized for standard panel-mount (or bulkhead-mount) PS2 and VGA DH15 connectors (not included). They will also fit standard D-sub 9-pin connectors (DB09), which are identical in size and shape to VGA.

Dimensions: 2.5 inches X 5.5 inches

Please note that the plates do not include any connectors or cables by default, as every customer's needs are different. When you add this plate to your order, you will have the opportunity to pair it with mounting options if you so desire.

For information about selecting, installing, and using wall plates in your applications, see our Guide to Custom Wall Plates.
