VGA KVM Switch with PS2: 4 CPU


Categories:
> KVM Switches
VGA KVM Switch with PS2: 4 CPU


KNV-104C   KVM Switch VGA/PS2/PS2
Not stocked. Special order only.
  4:1 $ 79.00 Call for ETA   Backorder
KNV-104R   KVM Switch PS2/RS232 Rextron   4:1 $ 99.00   4 in stock   Add to Cart
KNV-104RD   KVM Switch w/ Display Rextron   4:1 $ 119.00   7 in stock   Add to Cart

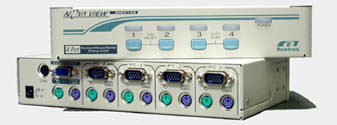

The KNV-104R KVM Switch allows a single user to control four computers from one console station (monitor, mouse, and keyboard).

    There are three models:

  • KNV-104C Generic KVM switch
  • KNV-104R Rextron KVM switch
  • KNV-104RD Rextron KVM switch w/ on-screen display

Both Rextron models are identical in appearance.

KNV-104 features mouse and keyboard emulation for automatic boot up, supports SVGA, VGA, and Multisync monitors, and selects any computer with the use of hot keys, by manual buttons or with the on-screen (OSD) menu (104RD only). There is no software to install, and no problems with software/OS compatibility.

The on-screen display menu (OSD) allows you to name each computer and switch between them. It also shows computer status, cascade configuration, and the switch status.

The KNV-104 is compatable with both RS232 serial and PS/2 mouse ports with the use of PS2/serial adaptors. You must use a PS2 mouse as the input to the switch. The operating systems of the computers will have no compatability problems; the unit will work with any type and any combination of computer.

These units can be cascaded with other models of KVMs, such as the KNV-102 and KNV-108. A Rack-Mount kit is also available.

No external power supply is required, as these units are powered through their keyboard connections to the computers.

The KVM Switch is useful for computer rooms which require access to multiple file servers via one console, factories needing to test and quality check products, and for showroom demo situations.


Specifications:

  • Selection made by: Push-button, keyboard hot-keys, or OSD menu
  • LED Information: Power (1, for the KNV-104R) Selected (4, one for each CPU)
  • Scan Interval: Selectable at 3, 8, 15 and 30 seconds
  • Keyboard Connector: MD06F (6-pin Mini-Din socket)
  • Mouse Connector: MD06F (6-pin Mini-Din socket) for PS/2 DB09F (9-pin D-Sub connector) for RS232 (SERIAL) (Serial option available with adaptor)
  • Monitor Connector: DH15M to each CPU, DH15F to monitor
  • Enclosure: Metal Enclosure
  • Dimensions: 44 x 220 x 130 mm
  • Weight: 1,050 grams / 2.32 lbs
