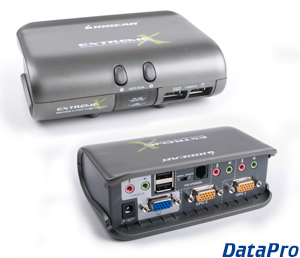

The KNV-142 KVM Switch allows a single
user to control two computers from one
console station (monitor, USB mouse, and
USB keyboard).
It features mouse and keyboard emulation
for automatic boot up, supports SVGA, VGA,
and Multisync monitors, and selects any
computer with the use of hot keys or by
manual buttons. There is no software to
install, and no problems with software
incompatibility.
These units can be cascaded.
The KNV-142 is ONLY compatable with
USB mice and keyboards.
The KVM Switch is useful for computer rooms
which require access to multiple file servers
via one console, factories needing to test
and quality check products, and for showroom
demo situations.
The unit has a built-in USB hub which gives
you the ability to share up to two more
peripherals such as a camera, scanner, etc.
which can be shared by all connected computers.
NOTE: KNV-142 ships with North American type 110 volt power supply.
Connectors:
----------
To CPUs To Monitor/KBD/Mouse
------- --------------------
Video DH15M DH15F
Keyboard USB 'B' USB 'A'
Mouse USB 'B' USB 'A'
Other USB 'B' USB 'A'

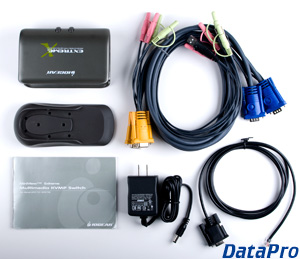

Cables Required:
---------------
Video/USB DH15M/USB 'A' DH15F/USB 'B'
Video 1150-xx N/A
Keyboard 1594-xx N/A
Mouse 1594-xx N/A
Other 1594-xx N/A
Specifications:
--------------
Power (Supplied with unit) 9v DC, 600 MA max.
Selection made by: Push-button
LED Information: Power (1, for the KNV-102)
Selected (4, one for each CPU)
Scan Interval: Selectable at 3, 8, 15 and 30 seconds
Keyboard Connector: USB 'A' (USB 'A' Type Connector)
Mouse Connector: USB 'A' (USB 'A' Type Connector)
Monitor Connector: DH15M to each CPU, DH15F to monitor
Enclosure: Metal Enclosure
|
