2-Way and 4-Way DB25 Manual Switch

Categories: > Manual Switches
Toggle between multiple serial DB25 connections with this data switch.

2025-02C	Data Switch Manual DB25 Special order - not normally stocked.	2:1	$	19.95	3 in stock
2025-04C	Data Switch Manual DB25 Special order - not normally stocked.	4:1	$	29.95	5 in stock
2025-22C	Data Switch Manual DB25 Special order - not normally stocked.	2:2	$	29.95	6 in stock

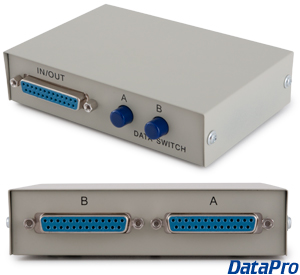

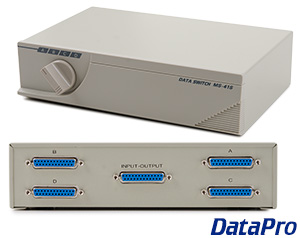

These manual data switches feature female 25-pin DB25 socket connections with either a pushbutton (2025-02C) or Break-Before-Make rotary knob (2025-04C, 2025-22C).

Break-Before-Make (BBM) prevents short-circuits during the switching process by fully disconnecting each connector before making a new connection.

The 2:2 (2025-22C) allows users to swap two DB25 devices, like a printer and scanner, between two computers or similar hardware.

Drawings & Models:

Part	Downloads
2025	Drawing (PDF)

Related Products:

Data Switch Manual DB15 2-row

Waterproof DB25 Dust Cover

Waterproof IP67 DB25 Panel Mount Extension Cable

DB25 Parallel Wall Plate

DB25 Panel-Mount Coupler

Features:

Switch between multiple DB25 connections

Specifications:

1:2: 1x in/out female 25-pin DB25 connectors, 2x in/out female 25-pin DB25 connector
1:4: 1x in/out female 25-pin DB25 connectors, 4x in/out female 25-pin DB25 connector
2:2: 2x in/out female 25-pin DB25 connectors, 2x in/out female 25-pin DB25 connector
26 AWG wire
Gold-plated contacts
Metal case
