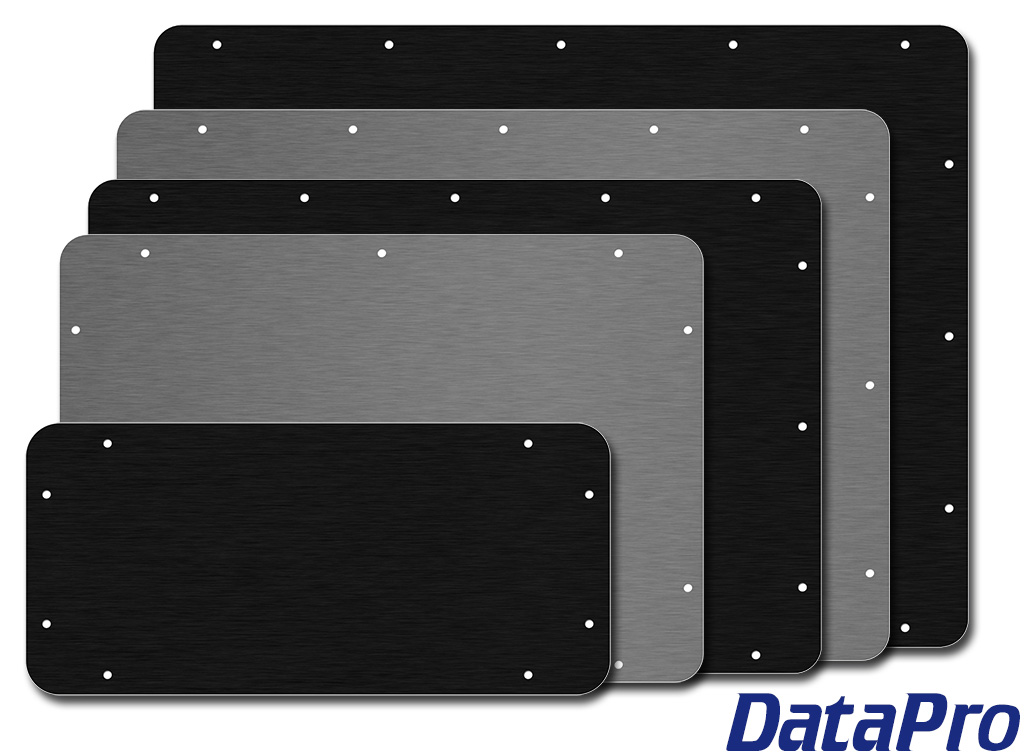

SKB Case Panels - Blank

Technical Documents

To install these panels in a case you will also need a panel frame.

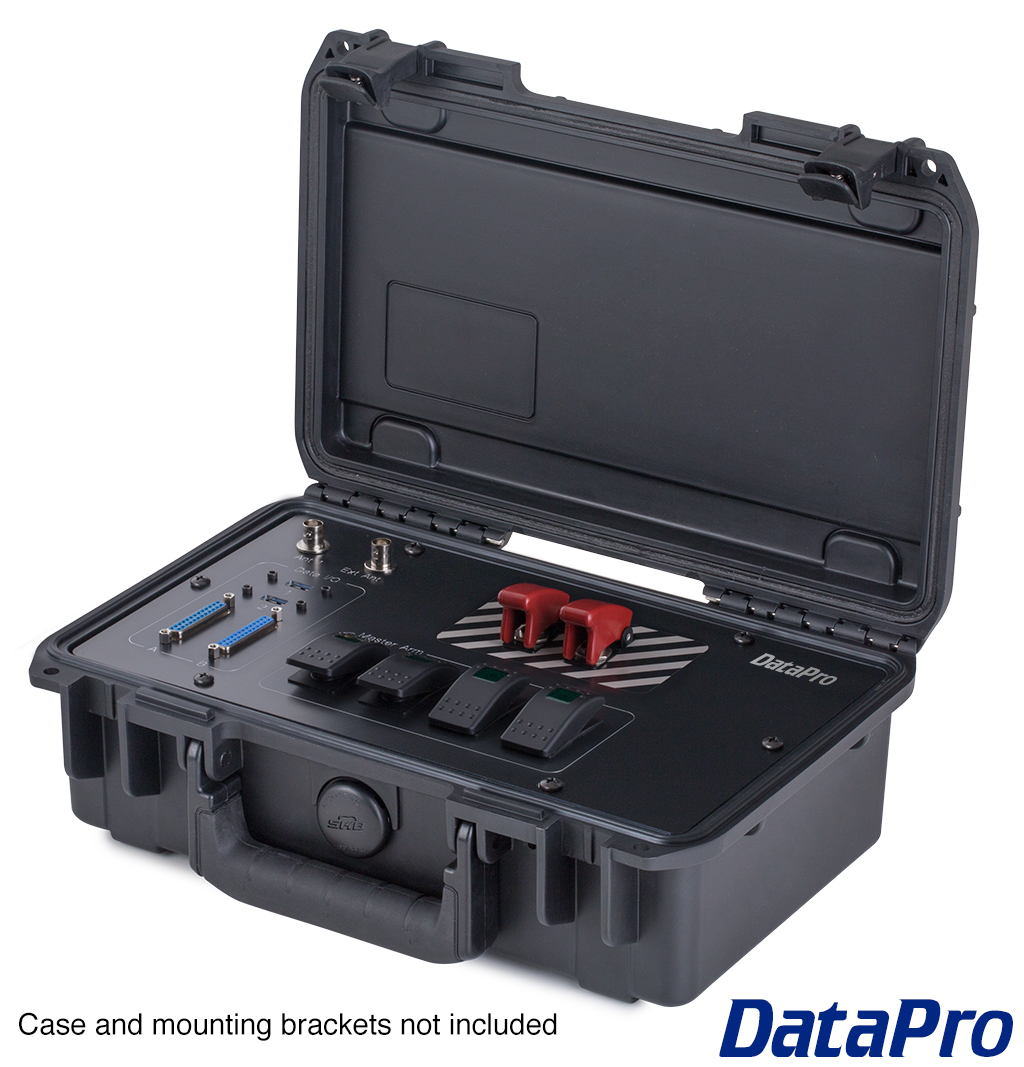

Panels are the ideal way to add electronics, controls, and interfaces to an SKB case. These precision CNC-cut panels are designed to maximize usable space, and perfectly fit SKB rugged cases. Made from durable 0.080" 5005 aluminum, and available in clear or black anodized (can also be customized in 6061 aluminum).

• Online customization with our Plate Designer
• Fully Custom Case Panels
• Case Modification
• Design & Engineering Services
• Pelican, Storm, Nanuk, and Seahorse case panels

Part	Fits Case	Width	Height	Downloads
PK-1006	SKB 1006 Series	10.660" (27.076cm)	6.063" (15.4cm)	Drawing (PDF)	Model (STEP)
PK-1209	SKB 1209 Series	11.938" (30.323cm)	8.938" (22.703cm)	Drawing (PDF)	Model (STEP)
PK-1510	SKB 1510 Series	14.938" (37.943cm)	10.438" (26.513cm)	Drawing (PDF)	Model (STEP)
PK-1711	SKB 1711 Series	16.938" (43.023cm)	11.438" (29.053cm)	Drawing (PDF)	Model (STEP)

Features:

• Precision CNC milled
• Designed for maximum usable area
• Engraving and Laser Marking available
• Includes mounting hardware

Specifications:

• 5005 Aluminum (6061 available too!)
• 0.080" (2.03mm) Thickness
