Apache Case Panels - Blank


Categories:
> Case Panels
Apache Case Panels - Blank

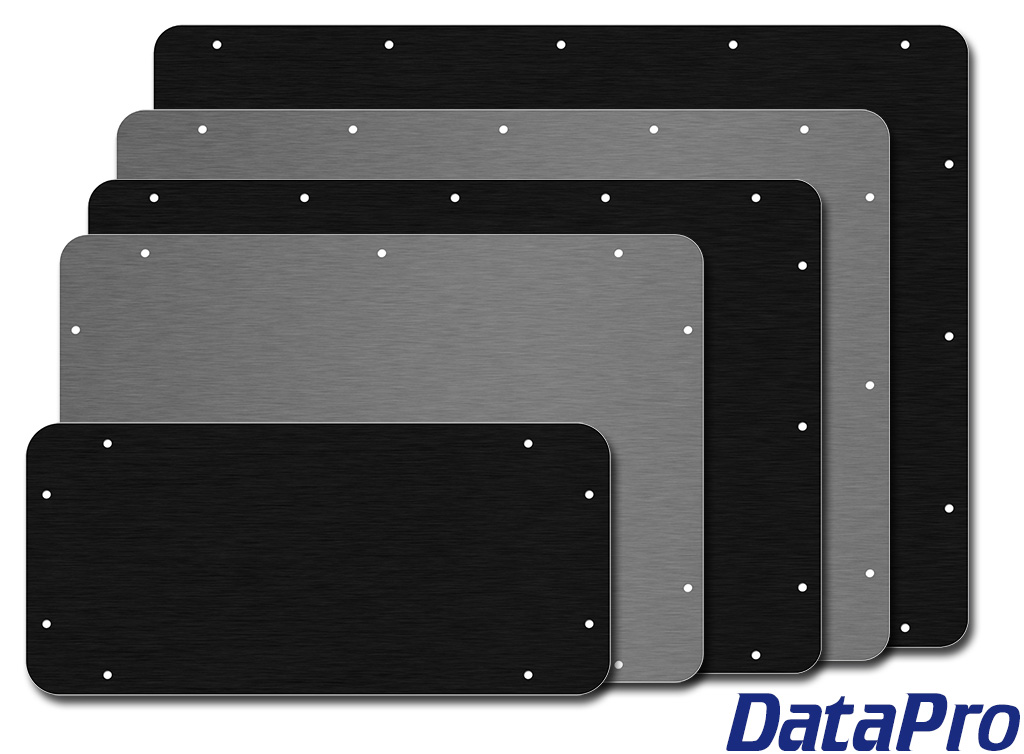

CNC milled aluminum case panels for Apache Cases. Ready for customization!



To install these panels in a case you will need a Bracket Kit, or Panel-Ready Modified Case.


PA-1800-ALU   Apache 1800 Panel Anodized   SLVR $ 49.95   1 in stock   Add to Cart
PA-1800-AZD   Apache 1800 Panel Anodized   BLK $ 49.95   1 in stock   Add to Cart
PA-2800-ALU   Apache 2800 Panel Anodized   SLVR $ 81.95   1 available Nov 4th   Backorder
PA-2800-AZD   Apache 2800 Panel Anodized   BLK $ 81.95   1 available Nov 4th   Backorder
PA-3800-ALU   Apache 3800 Panel Anodized   SLVR $ 91.95   1 available Nov 4th   Backorder
PA-3800-AZD   Apache 3800 Panel Anodized   BLK $ 91.95   1 available Nov 4th   Backorder
PA-4800-ALU   Apache 4800 Panel Anodized   SLVR $ 119.95   1 available Nov 4th   Backorder
PA-4800-AZD   Apache 4800 Panel Anodized   BLK $ 119.95   1 available Nov 4th   Backorder
PA-5800-ALU   Apache 5800 Panel Anodized   SLVR $ 126.95   1 available Nov 4th   Backorder
PA-5800-AZD   Apache 5800 Panel Anodized   BLK $ 126.95   1 available Nov 4th   Backorder

Technical Documents

Download Drawing

Apache Case Panels

To install these panels in an Apache case you will need a Bracket Kit, or Panel-Ready Modified Case.

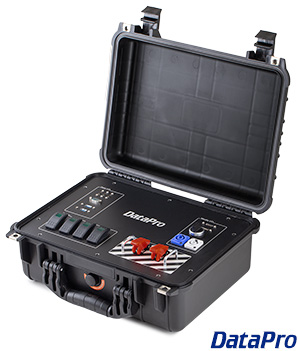

Panels are the ideal way to add electronics, controls, and interfaces to an Apache case. These precision CNC-cut panels are designed to maximize usable space, and perfectly fit Apache cases. Made from durable 0.080" 5005 aluminum, and available in clear or black anodized (can also be customized in 6061 aluminum).

Includes mounting hardware (Phillips 8-32 x 3/8).


Drawings:

PartFits CaseWidthHeightDownloads
PA-1800Apache 18008.125" (20.638cm)5.625" (14.288cm)PDF Drawing (PDF)
PA-2800Apache 280011.875" (30.163cm)9" (22.86cm)PDF Drawing (PDF)
PA-3800Apache 380014.875" (37.783cm)10.625" (26.988cm)PDF Drawing (PDF)
PA-4800Apache 480017.875" (45.403cm)12.875" (32.703cm)PDF Drawing (PDF)
PA-5800Apache 580020.25" (51.435cm)11.375" (28.893cm)PDF Drawing (PDF)


RoHS Compliant
REACH Compliant
Made in the USA

Related Products:

Features:

  • Precision CNC milled
  • Designed for maximum usable area
  • Engraving and Laser Marking available
  • Includes mounting hardware (Phillips 8-32 x 3/8)


Specifications:

  • 5005 Aluminum (6061 available too!)
  • 0.080" (2.03mm) Thickness
