Pelican Storm Case Panels - Blank


Categories:
> Case Panels, Blank Wall Plates and Face Plates

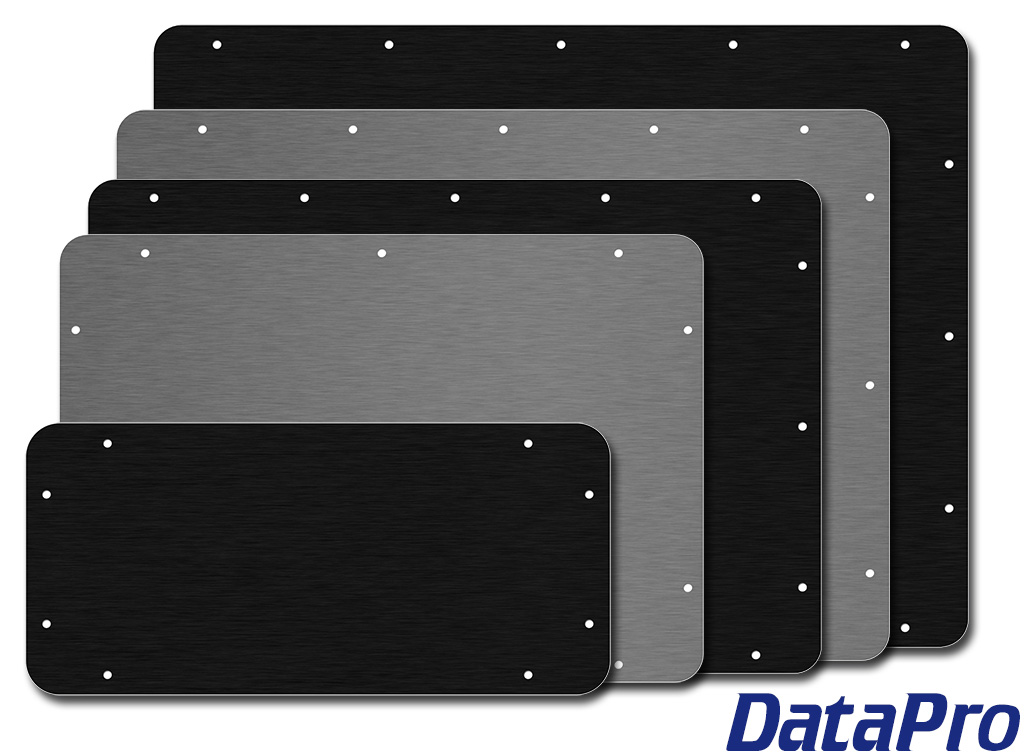

Pelican Storm Case Panels - Blank


Precision CNC milled Pelican Storm rugged case panels for customization or immediate installation!

To install these panels in a Pelican Storm case you will also need a Storm Panel Frame or Bracket Kit.


PP-IM20XX-BA   Storm IM20XX Panel Anodized   SLVR $ 61.95   2 in stock   Add to Cart
PP-IM20XX-BB   Storm IM20XX Panel Anodized   BLK $ 61.95   1 in stock   Add to Cart
PP-IM2100-BA   Storm IM2100 Panel Anodized   SLVR $ 74.95   2 in stock   Add to Cart
PP-IM2100-BB   Storm IM2100 Panel Anodized   BLK $ 74.95   2 in stock   Add to Cart
PP-IM2200-BA   Storm IM2200 Panel Anodized   SLVR $ 83.95   1 in stock   Add to Cart
PP-IM2200-BB   Storm IM2200 Panel Anodized   BLK $ 83.95   2 in stock   Add to Cart
PP-IM2200-LA   Storm IM2200 Lid Panel Anodize   SLVR $ 83.95   1 in stock   Add to Cart
PP-IM2200-LB   Storm IM2200 Lid Panel Anodize   BLK $ 83.95   3 in stock   Add to Cart
PP-IM2275-BA   Storm IM2275 Panel Anodized   SLVR $ 86.95   2 in stock   Add to Cart
PP-IM2275-BB   Storm IM2275 Panel Anodized   BLK $ 86.95   1 in stock   Add to Cart
PP-IM2275-LA   Storm IM2275 Lid Panel Anodize   SLVR $ 86.95   1 in stock   Add to Cart
PP-IM2275-LB   Storm IM2275 Lid Panel Anodize   BLK $ 86.95   2 in stock   Add to Cart
PP-IM2300-BA   Storm IM2300 Panel Anodized   SLVR $ 99.95   2 in stock   Add to Cart
PP-IM2300-BB   Storm IM2300 Panel Anodized   BLK $ 99.95   2 in stock   Add to Cart
PP-IM2300-LA   Storm IM2300 Lid Panel Anodize   SLVR $ 99.95   1 in stock   Add to Cart
PP-IM2300-LB   Storm IM2300 Lid Panel Anodize   BLK $ 99.95   3 in stock   Add to Cart
PP-IM2306-BA   Storm IM2306 Panel Anodized   SLVR $ 73.95   1 in stock   Add to Cart
PP-IM2306-BB   Storm IM2306 Panel Anodized   BLK $ 73.95   2 in stock   Add to Cart
PP-IM2306-LA   Storm IM2306 Lid Panel Anodize   SLVR $ 73.95   1 in stock   Add to Cart
PP-IM2306-LB   Storm IM2306 Lid Panel Anodize   BLK $ 73.95   1 in stock   Add to Cart
PP-IM24XX-BA   Storm IM24XX Panel Anodized   SLVR $ 104.95   4 in stock   Add to Cart
PP-IM24XX-BB   Storm IM24XX Panel Anodized   BLK $ 104.95   6 in stock   Add to Cart
PP-IM24XX-LA   Storm IM24XX Lid Panel Anodize   SLVR $ 104.95   4 in stock   Add to Cart
PP-IM24XX-LB   Storm IM24XX Lid Panel Anodize   BLK $ 104.95   6 in stock   Add to Cart
PP-IM2500-BA   Storm IM2500 Panel Anodized   SLVR $ 111.95   1 in stock   Add to Cart
PP-IM2500-BB   Storm IM2500 Panel Anodized   BLK $ 111.95   1 in stock   Add to Cart
PP-IM2500-LA   Storm IM2500 Lid Panel Anodize   SLVR $ 111.95   2 in stock   Add to Cart
PP-IM2500-LB   Storm IM2500 Lid Panel Anodize   BLK $ 111.95   2 in stock   Add to Cart
PP-IM26XX-BA   Storm IM26XX Panel Anodized   SLVR $ 127.95   2 in stock   Add to Cart
PP-IM26XX-BB   Storm IM26XX Panel Anodized   BLK $ 127.95   2 in stock   Add to Cart
PP-IM26XX-LA   Storm IM26XX Lid Panel Anodize   SLVR $ 127.95   2 in stock   Add to Cart
PP-IM26XX-LB   Storm IM26XX Lid Panel Anodize   BLK $ 127.95   2 in stock   Add to Cart
PP-IM27XX-BA   Storm IM27XX Panel Anodized   SLVR $ 154.95   4 in stock   Add to Cart
PP-IM27XX-BB   Storm IM27XX Panel Anodized   BLK $ 154.95   3 in stock   Add to Cart
PP-IM27XX-LA   Storm IM27XX Lid Panel Anodize   SLVR $ 154.95   1 in stock   Add to Cart
PP-IM27XX-LB   Storm IM27XX Lid Panel Anodize   BLK $ 154.95   2 in stock   Add to Cart
PP-IM2875-BA   Storm IM2875 Panel Anodized   SLVR $ 183.95   1 in stock   Add to Cart
PP-IM2875-BB   Storm IM2875 Panel Anodized   BLK $ 183.95   3 in stock   Add to Cart
PP-IM2875-LA   Storm IM2875 Lid Panel Anodize   SLVR $ 183.95   1 in stock   Add to Cart
PP-IM2875-LB   Storm IM2875 Lid Panel Anodize   BLK $ 183.95   Made on demand!   Add to Cart
PP-IM29XX-BA   Storm IM29XX Panel Anodized   SLVR $ 193.95   2 in stock   Add to Cart
PP-IM29XX-BB   Storm IM29XX Panel Anodized   BLK $ 193.95   2 in stock   Add to Cart
PP-IM29XX-LA   Storm IM29XX Lid Panel Anodize   SLVR $ 193.95   1 in stock   Add to Cart
PP-IM29XX-LB   Storm IM29XX Lid Panel Anodize   BLK $ 193.95   Made on demand!   Add to Cart
PP-IM30XX-BA   Storm IM30XX Panel Anodized   SLVR $ 214.95   1 in stock   Add to Cart
PP-IM30XX-BB   Storm IM30XX Panel Anodized   BLK $ 214.95   Made on demand!   Add to Cart
PP-IM30XX-LA   Storm IM30XX Lid Panel Anodize   SLVR $ 214.95   1 in stock   Add to Cart
PP-IM30XX-LB   Storm IM30XX Lid Panel Anodize   BLK $ 214.95   Made on demand!   Add to Cart

Technical Documents

Download Drawing

Download 3D Model

Storm Case with Panel

To install these panels in a Pelican Storm case you will also need a Storm Panel Frame or Bracket Kit.

Panels are the ideal way to add electronics, controls, and interfaces to a Storm case. These precision CNC-cut panels are designed to maximize usable space, and perfectly fit Storm cases. Made from durable 0.090" 5005 aluminum, and available in clear or black anodized (can also be customized in 6061 aluminum).

Includes mounting hardware.

Note: Panels for "24xx" cases will not fit Storm iM2435


PartFits CaseWidthHeightDownloads
PP-IM20XX-BIM20xx Base9.240" (23.470cm)7.320" (18.593cm)PDF Drawing (PDF)STEP Model (STEP)
PP-IM2100-BIM2100 Base12.810" (32.537cm)9.010" (22.885cm)PDF Drawing (PDF)STEP Model (STEP)
PP-IM2200-BIM2200 Base14.876" (37.785cm)10.376" (26.355cm)PDF Drawing (PDF)STEP Model (STEP)
PP-IM2200-LIM2200 Lid14.876" (37.785cm)10.376" (26.355cm)PDF Drawing (PDF)STEP Model (STEP)
PP-IM2275-BIM2200 Base14.026" (35.626cm)13.123" (33.332cm)PDF Drawing (PDF)STEP Model (STEP)
PP-IM2275-LIM2200 Lid14.026" (35.626cm)13.123" (33.332cm)PDF Drawing (PDF)STEP Model (STEP)
PP-IM2300-BIM2300 Base16.900" (42.926cm)11.633" (29.548cm)PDF Drawing (PDF)STEP Model (STEP)
PP-IM2300-LIM2300 Lid16.900" (42.926cm)11.633" (29.548cm)PDF Drawing (PDF)STEP Model (STEP)
PP-IM2306-BIM2306 Base16.900" (42.926cm)6.150" (15.621cm)PDF Drawing (PDF)STEP Model (STEP)
PP-IM2306-LIM2306 Lid16.900" (42.926cm)6.150" (15.621cm)PDF Drawing (PDF)STEP Model (STEP)
PP-IM24XX-BIM24xx Base17.936" (45.557cm)12.906" (32.781cm)PDF Drawing (PDF)STEP Model (STEP)
PP-IM24XX-LIM24xx Lid17.936" (45.557cm)12.906" (32.781cm)PDF Drawing (PDF)STEP Model (STEP)
PP-IM2500-BIM2500 Base20.332" (51.643cm)11.282" (28.656cm)PDF Drawing (PDF)STEP Model (STEP)
PP-IM2500-LIM2500 Lid20.332" (51.643cm)11.282" (28.656cm)PDF Drawing (PDF)STEP Model (STEP)
PP-IM26XX-BIM26xx Base19.812" (50.322cm)13.778" (34.996cm)PDF Drawing (PDF)STEP Model (STEP)
PP-IM26XX-LIM26xx Lid19.812" (50.322cm)13.778" (34.996cm)PDF Drawing (PDF)STEP Model (STEP)
PP-IM27XX-BIM27xx Base21.932" (55.707cm)16.932" (43.007cm)PDF Drawing (PDF)STEP Model (STEP)
PP-IM27XX-LIM27xx Lid21.932" (55.707cm)16.932" (43.007cm)PDF Drawing (PDF)STEP Model (STEP)
PP-IM2875-BIM2875 Base22.396" (56.886cm)20.956" (53.228cm)PDF Drawing (PDF)STEP Model (STEP)
PP-IM2875-LIM2875 Lid22.396" (56.886cm)20.956" (53.228cm)PDF Drawing (PDF)STEP Model (STEP)
PP-IM29XX-BIM29xx Base28.860" (73.304cm)17.860" (45.364cm)PDF Drawing (PDF)STEP Model (STEP)
PP-IM29XX-LIM29xx Lid28.860" (73.304cm)17.860" (45.364cm)PDF Drawing (PDF)STEP Model (STEP)
PP-IM30XX-BIM30xx Base29.650" (75.311cm)20.650" (52.451cm)PDF Drawing (PDF)STEP Model (STEP)
PP-IM30XX-LIM30xx Lid29.650" (75.311cm)20.650" (52.451cm)PDF Drawing (PDF)STEP Model (STEP)


RoHS Compliant
REACH Compliant
Made in the USA

Related Products:

Features:

  • Precision CNC milled
  • Designed for maximum usable area
  • Engraving and Laser Marking available
  • Fits Pelican Storm panel frames
  • Includes mounting hardware


Specifications:

  • 5005 Aluminum (6061 available too!)
  • 0.090" (2.29mm) Thickness
  • See drawings for dimensions of individual panels.
