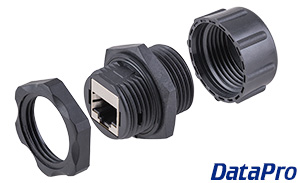

IP67 Waterproof Panel Mount Cat6 Ethernet Coupler Female-Female

Technical Documents

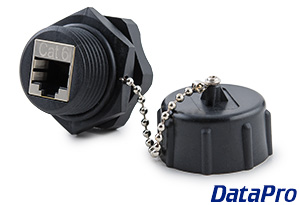

This coupler features standard RJ-45 jacks on each side, and is IP67 waterproof and dustproof when capped or paired with a Waterproof Ethernet Cable.

Click here for PDF version

Features:

• UL Listed
• RoHS Compliant
• Dustproof PVC Cap
• Shielded

Specifications:

• IP67 Rated

• Shielded Case: Brass, Nickel Plated
• Main body And Dust Cap: PBT+GF, UL94V-0
• Spring Wire: Phosphor Bronze, 50U” Gold Plated
• IDC Plastic: PC, UL94V-0
• IDC Contact: Phosphor Bronze, Tin Over Nickel Undercoat

• Insertion Life: 750 Mating Cycles w/ FCC Compliant 8P Plug
• Contact Force: 100 Grams w/ FCC Compliant 8P Plug
• Plug Retention Force: 11 Lbf min
• Durability: 200 Termination Cycles
• Operating Temperature: -10C to 60C
• Storage Temperature: -40C to 68C
• Humidity: 10%-90% RH

• Insulation Resistance: 500 MOhm
• Dielectric Withstanding Voltage: 1000 V AC
• DC Current Rating: 1.5 Amps
• DC Resistance: 0.1 Ohm
• Contact Resistance: 20 mOhm

• REACH-219 Compliant
