Panel-Mount Keystone Module Brackets


Categories:
> Keystone Module Couplers, Panel-Mount Couplers
Panel-Mount Keystone Module Brackets


Add a snap-in Keystone module to any plate, panel, or bulkhead with these convenient brackets.

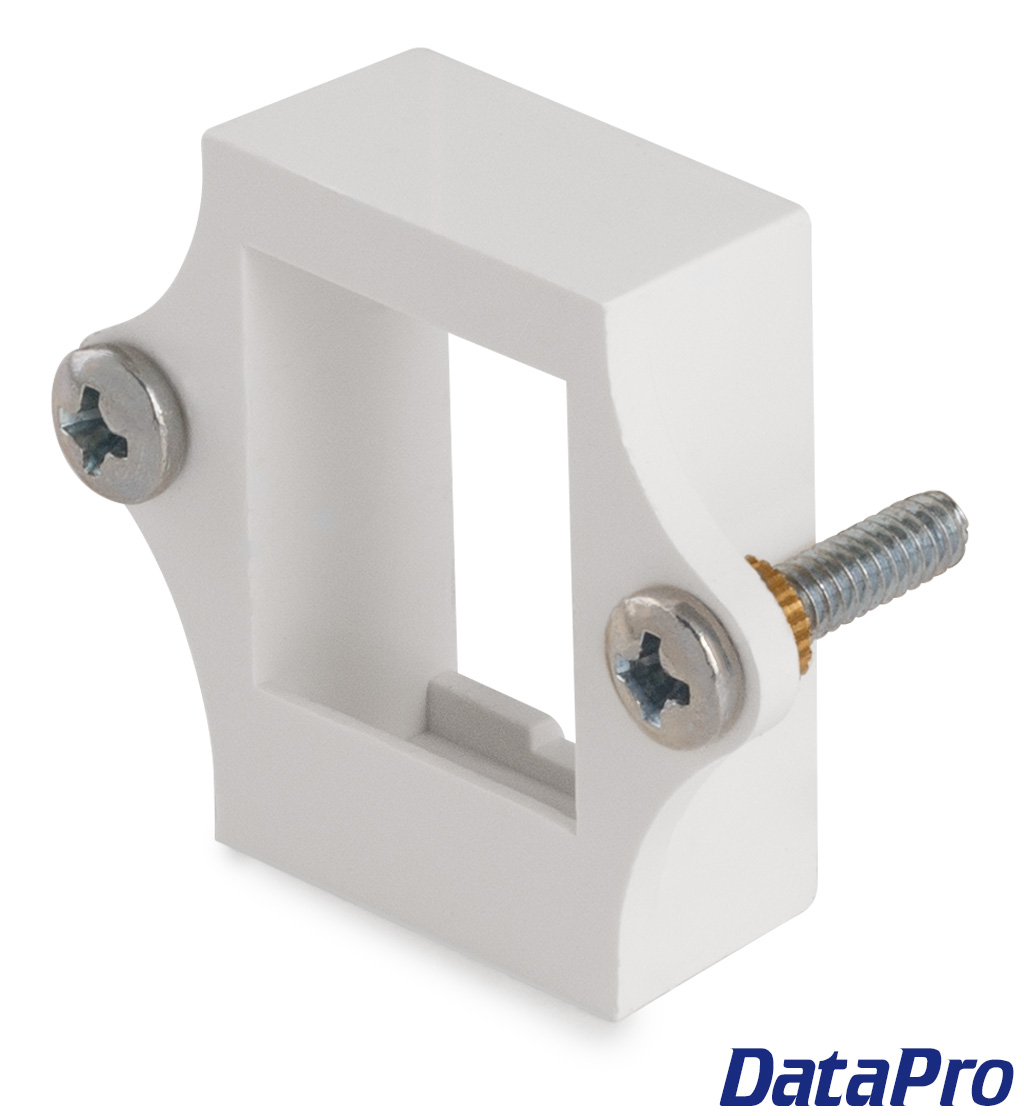

ZZ-KMB-1   Keystone Mounting Bracket WHT   1X $ 4.95   661 in stock   Add to Cart

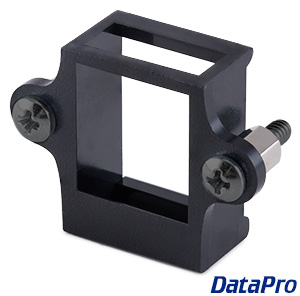

ZZ-KMB-1-BK   Keystone Mounting Bracket BLK   1X $ 5.95   252 in stock   Add to Cart

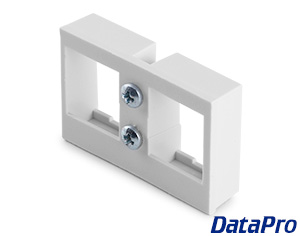

ZZ-KMB-2   Keystone Mounting Bracket WHT   2X $ 4.95   346 in stock   Add to Cart

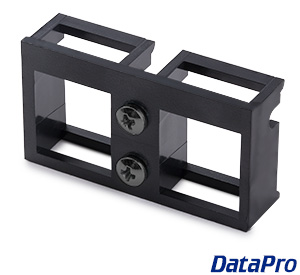

ZZ-KMB-2-BK   Keystone Mounting Bracket BLK   2X $ 5.95   12 in stock   Add to Cart

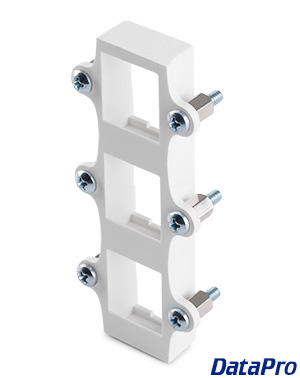

ZZ-KMB-3   Keystone Mounting Bracket WHT   3X $ 5.95   13 in stock   Add to Cart

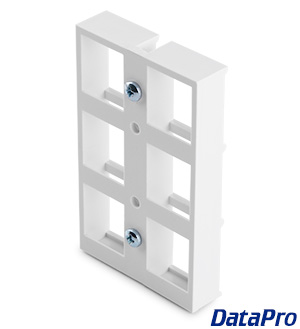

ZZ-KMB-6   Keystone Mounting Bracket WHT   6X $ 6.95   36 in stock   Add to Cart

Technical Documents

Download Drawing

These brackets allow a Keystone module to be securely attached to a surface with a corresponding cutout. Available in black or white, with 1-6 modules.

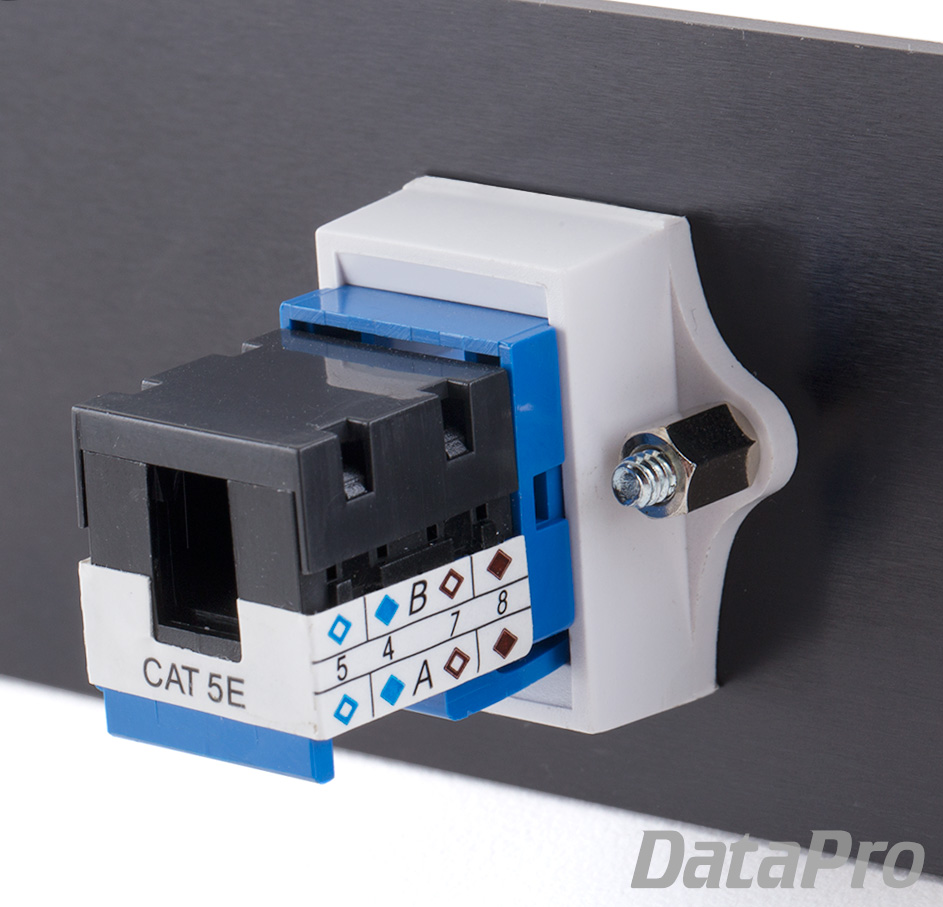

Installed Keystone Bracket


Drawings:

Part Description Downloads
ZZ-KMB-1 Keystone Mounting Bracket Single PDF Drawing (PDF)
ZZ-KMB-2 Keystone Mounting Bracket Double PDF Drawing (PDF)STEP Model (STEP)
ZZ-KMB-1 Keystone Mounting Bracket Triple Request Drawing
ZZ-KMB-1 Keystone Mounting Bracket 6x Request Drawing


RoHS Compliant
REACH Compliant
Made in the USA

Related Products:

Features:

  • Made from high-impact ABS plastic
  • Includes mounting hardware
