Pelican Air Interior Sub-Panels

Download installation guide

Sub-Panel Installation Service

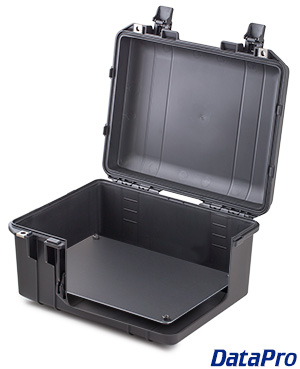

These machined aluminum interior panels can be installed on the floor of a Pelican Air case to mount electronics or other components. Each panel is designed to provide maximum usable space in a given case, including cutouts for interior features like handles and wheel wells. Panels are securely mounted with low-profile carriage bolts, and include 0.5" (1.27cm) standoffs to create space below the panel for cables, mounting hardware, etc.

Sub-panels are often used in conjunction with a Pelican Air Case Panel or Modified Pelican Case.

Notes:

• Standard installation is weather-resistant, but will compromise waterproofing. For waterproof installation solutions please contact us.
• "Peli" branded cases from European suppliers may have slightly different dimensions and external features from US manufactured cases. Please double-check all measurements carefully to ensure your case is compatible. Need a sub-panel for something not listed here? Contact us for options!
• Panel shape and mounting hardware placement may vary depending on the size and features of the associated case. For detailed design and dimensional information, please see the drawings below:

Installation Guide
Sub-Panel Installation Guide			Download (PDF)

Part	Downloads
PP-S1465-AZD	Drawing (PDF)
PP-S1485-AZD	Drawing (PDF)	Model (STEP)
PP-S1507-AZD	Drawing (PDF)	Model (STEP)
PP-S1525-AZD	Drawing (PDF)
PP-S1535-AZD	Drawing (PDF)	Model (STEP)
PP-S1555-AZD	Drawing (PDF)
PP-S1556-AZD	Drawing (PDF)
PP-S1557-AZD	Drawing (PDF)
PP-S1595-AZD	Drawing (PDF)
PP-S1605-AZD	Drawing (PDF)
PP-S1606-AZD	Drawing (PDF)
PP-S1607-AZD	Drawing (PDF)	Model (STEP)
PP-S1615-AZD	Drawing (PDF)
PP-S1626-AZD	Drawing (PDF)
PP-S1637-AZD	Drawing (PDF)	Model (STEP)

Features:

• Precision CNC milled
• Includes mounting hardware
• Designed to fit specific models of Pelican Air case

Specifications:

• Made from 0.080" anodized 5005 aluminum

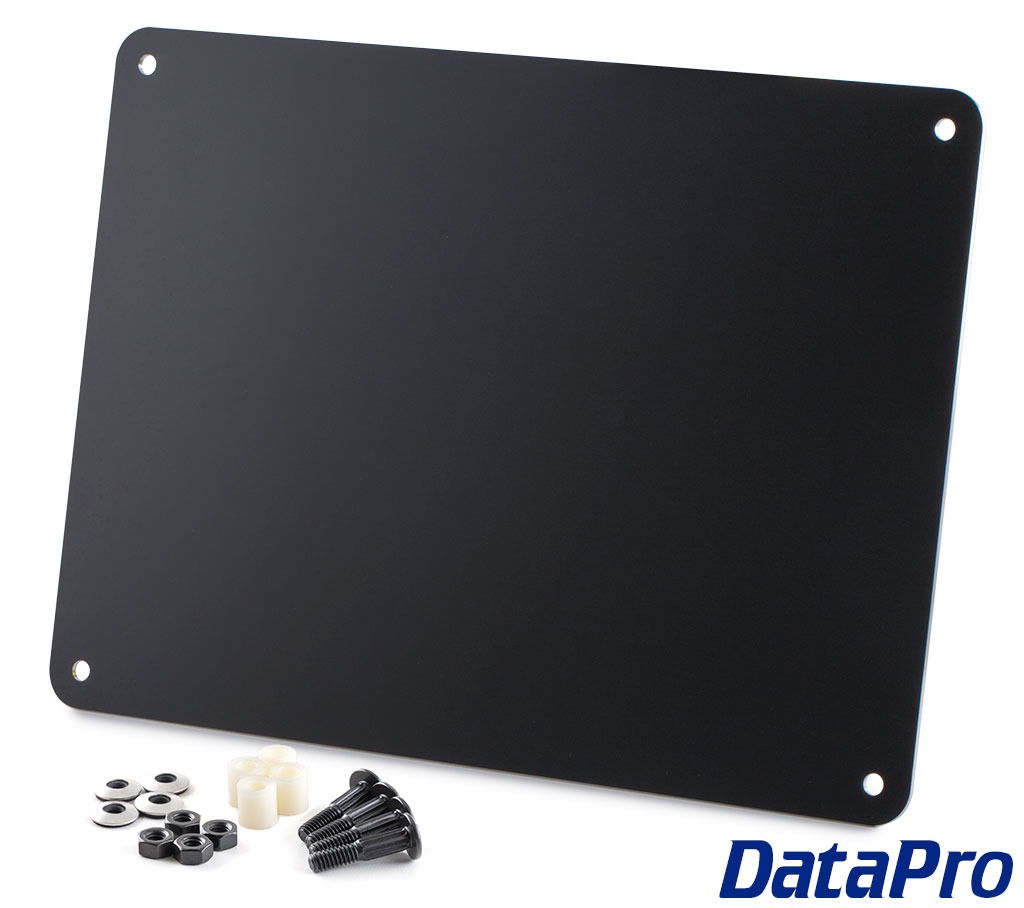

• Installation hardware: 1.25" Carriage Bolt (4), 0.5" Plastic Spacer (4), Hex Nut (4), Neoprene-Backed Washers (4)
