Pelican Storm Case Interior Sub-Panels


Categories:
> Interior Sub-Panels
Pelican Storm Case Interior Sub-Panels

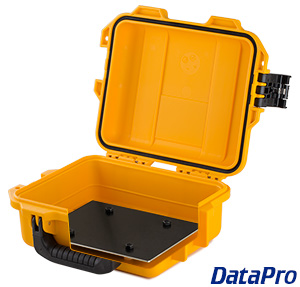

These interior panels are designed to be installed on the floor of a Pelican Storm case, and can be used to mount electronics or other components.

PP-SIM20XX-B   Storm IM20XX Sub-Panel Anodize   BLK $ 62.95   1 in stock   Add to Cart
PP-SIM2100-B   Storm IM2100 Sub-Panel Anodize   BLK $ 83.95   Made on demand!   Add to Cart
PP-SIM2200-B   Storm IM2200 Sub-Panel Anodize   BLK $ 89.95 Ships in 2 weeks   Add to Cart
PP-SIM2275-B   Storm IM2275 Sub-Panel Anodize   BLK $ 99.95 Ships in 2 weeks   Add to Cart
PP-SIM2300-B   Storm IM2300 Sub-Panel Anodize   BLK $ 101.95   1 in stock   Add to Cart
PP-SIM2306-B   Storm IM2306 Sub-Panel Anodize   BLK $ 76.95 Ships in 2 weeks   Add to Cart
PP-SIM24XX-B   Storm IM24XX Sub-Panel Anodize   BLK $ 109.95   Made on demand!   Add to Cart
PP-SIM2500-B   Storm IM2500 Sub-Panel Anodize   BLK $ 112.95   Made on demand!   Add to Cart
PP-SIM2600-B   Storm IM2600 Sub-Panel Anodize   BLK $ 122.95 Ships in 2 weeks   Add to Cart
PP-SIM2620-B   Storm IM2620 Sub-Panel Anodize   BLK $ 124.95 Ships in 2 weeks   Add to Cart
PP-SIM2700-B   Storm IM2700 Sub-Panel Anodize   BLK $ 149.95 Ships in 2 weeks   Add to Cart
PP-SIM2720-B   Storm IM2720 Sub-Panel Anodize   BLK $ 152.95   Made on demand!   Add to Cart
PP-SIM2750-B   Storm IM2750 Sub-Panel Anodize   BLK $ 152.95   1 in stock   Add to Cart
PP-SIM2875-B   Storm IM2875 Sub-Panel Anodize   BLK $ 179.95 Ships in 2 weeks   Add to Cart
PP-SIM29XX-B   Storm IM29XX Sub-Panel Anodize   BLK $ 191.95 Ships in 2 weeks   Add to Cart
PP-SIM3075-B   Storm IM3075 Sub-Panel Anodize   BLK $ 219.95 Ships in 2 weeks   Add to Cart

Technical Documents

Download Drawing

PDF Download installation guide

Sub-Panel Installation Service

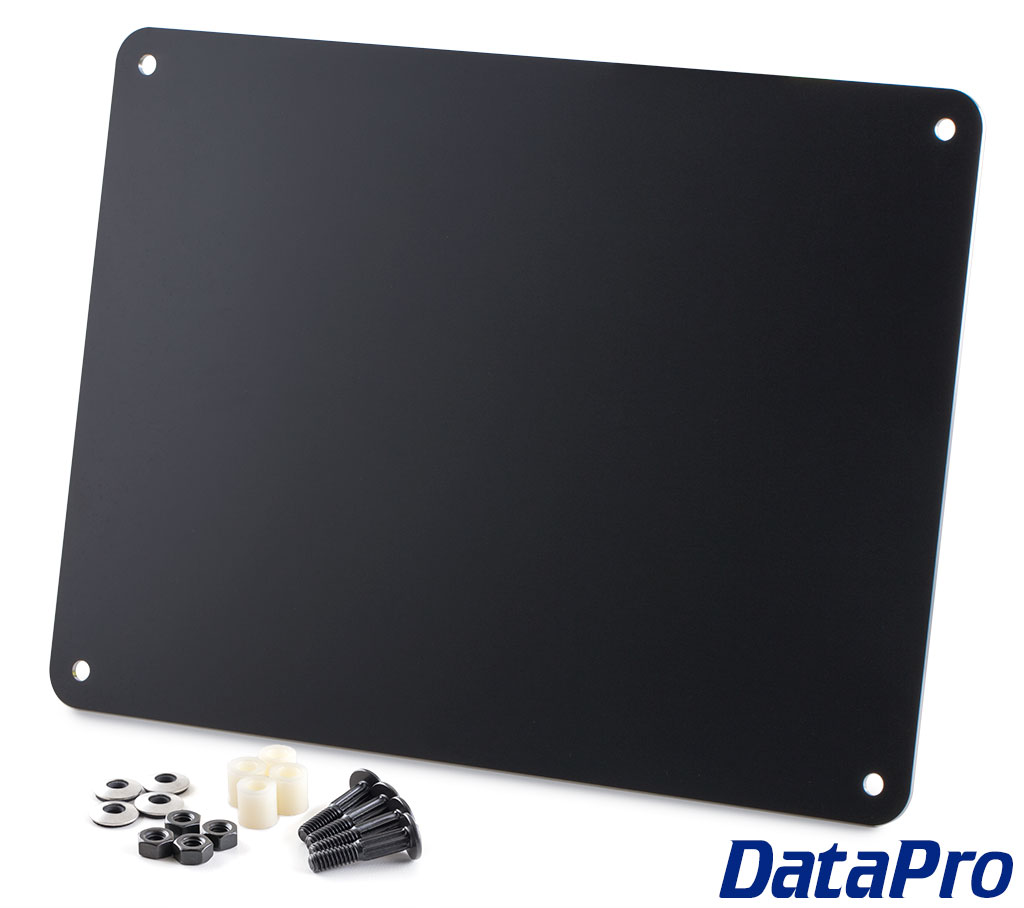

These interior panels are designed to be installed on the floor of a Pelican Storm case, and can be used to mount electronics or other components. Each panel includes mounting hardware with 0.5" (1.27cm) standoffs.

Pelican Case Panel Components

These are often used in conjunction with a Pelican Storm Case Panel.

Note: Standard installation requires drilling through the case bottom, and will compromise waterproofing. For waterproof installation solutions please contact us

Panel shape and mounting hardware placement may vary depending on the size and features of the associated case. For detailed design and dimensional information, please see the drawings below:

Installation Guide
Sub-Panel Installation Guide PDF Download (PDF)

Part Fits Case Width Height Downloads
PP-SIM20XX-BStorm IM20XX9.240" (23.470cm)7.320" (18.593cm)PDF Drawing (PDF)
PP-SIM2100-BStorm IM210012.810" (32.537cm)9.010" (22.885cm)PDF Drawing (PDF)
PP-SIM2200-BStorm IM220014.876" (37.785cm)10.376" (26.355cm)Request Drawing
PP-SIM2275-BStorm IM227514.026" (35.626cm)13.123" (33.332cm)PDF Drawing (PDF)
PP-SIM2300-BStorm IM230016.900" (42.926cm)11.633" (29.548cm)PDF Drawing (PDF)
PP-SIM2306-BStorm IM230616.900" (42.926cm)6.150" (15.621cm)Request Drawing
PP-SIM24XX-BStorm IM24XX17.936" (45.557cm)12.906" (32.781cm)PDF Drawing (PDF)
PP-SIM2500-BStorm IM250020.332" (51.643cm)11.282" (28.656cm)PDF Drawing (PDF)
PP-SIM2600-BStorm IM260019.812" (50.322cm)13.778" (34.996cm)Request Drawing
PP-SIM2620-BStorm IM262019.812" (50.322cm)13.778" (34.996cm)Request Drawing
PP-SIM2700-BStorm IM270021.932" (55.707cm)16.932" (43.007cm)Request Drawing
PP-SIM2720-BStorm IM272021.932" (55.707cm)16.932" (43.007cm)PDF Drawing (PDF)
PP-SIM2750-BStorm IM275021.932" (55.707cm)16.932" (43.007cm)PDF Drawing (PDF)
PP-SIM2875-BStorm IM287522.396" (56.886cm)20.956" (53.228cm)Request Drawing
PP-SIM29XX-BStorm IM29XX28.860" (73.304cm)17.860" (45.364cm)PDF Drawing (PDF)
PP-SIM3075-BStorm IM307529.650" (75.311cm)20.650" (52.451cm)Request Drawing


RoHS Compliant
REACH Compliant
Made in the USA

Related Products:

Features:

  • Precision CNC milled
  • Includes mounting hardware
  • Designed to fit specific models of Pelican Storm case


Specifications:

  • Made from 0.080" anodized 5005 aluminum
  • Installation hardware: 1.25" Carriage Bolt (4), 0.5" Plastic Spacer (4), Hex Nut (4), Neoprene-Backed Washers (4)
