DisplayPort Panel-Mount Coupler


Categories:
> Screw-mounted Couplers, DisplayPort Cables
DisplayPort Panel-Mount Coupler

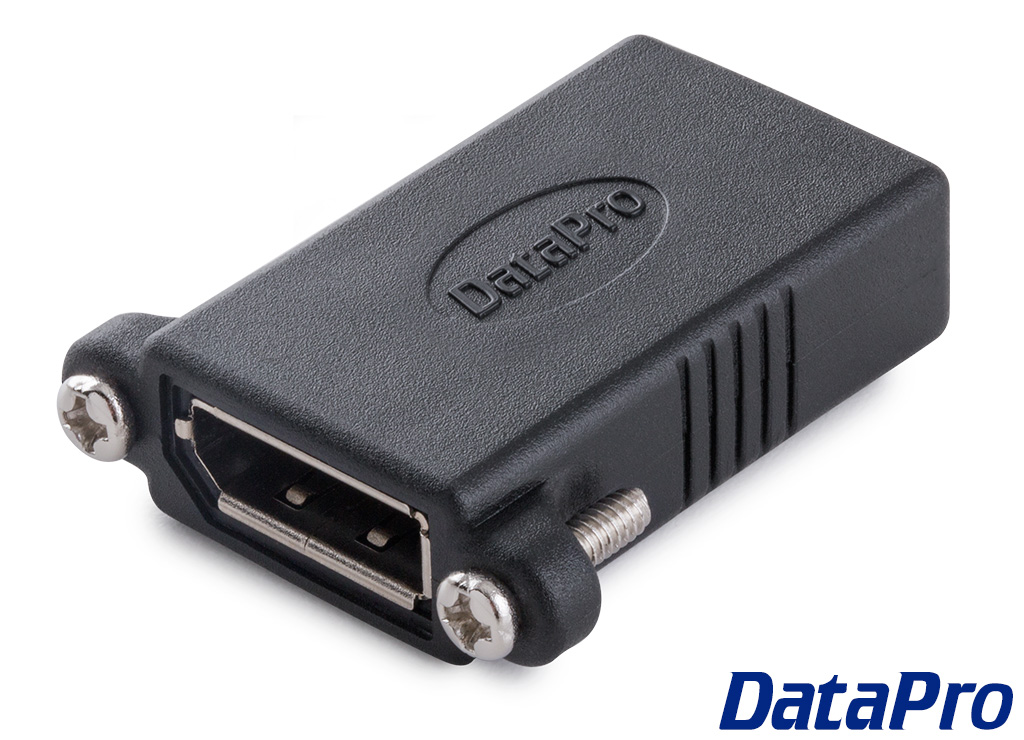

The easiest way to build DisplayPort into your world is with this handy female-to-female panel-mount passthrough coupler. The dual female ports will splice two normal DisplayPort cables, and the panel-mounting shell will mount directly to an enclosure or wall panel.

CCP-DSP   Coupler Panel-Mount DisplayPrt   EACH $ 11.95   52 in stock   Add to Cart

Technical Documents

Download Drawing

Download 3D Model

Please note that due to technical limitations, this coupler does not transmit power, which is necessary for some display adapters (but will work fine with monitors). To extend a DisplayPort source port with power, we recommend a DisplayPort Extension Cable

The easiest way to build DisplayPort into your world is with this handy female-to-female panel-mount passthrough coupler. The dual female ports will splice two normal DisplayPort cables, and the panel-mounting shell will mount directly to an enclosure or wall panel.

This type of coupler is often featured in home theater installations and other professional-type setups where video sources and displays are separated. It's also quite convenient as an interchangeable part in an OEM rig, where repeated insertions might wear on the mounted port and an easily-replaceable coupler is preferable to a complicated retermination.

For best signal quality in a plate-to-plate run, we recommend using one of our DisplayPort panel-mount cables with this coupler rather than two couplers. This type of setup would have one less interconnect, which helps prevent signal degradation.

DisplayPort is a relatively new standard in computer audio/video connectivity, offering resolutions up to 2560x1600 (for 30-inch displays) with uncompressed 5.1 or 7.1 audio in a compact connector.

If you are connecting an HDTV, DVD player, or Blu-ray player, you are probably using HDMI, which looks similar to DisplayPort. We have a full line of HDMI products available, including an HDMI panel-mount coupler.


Click here for PDF version


Features:

  • Panel-mountable Female DisplayPort Socket
  • Includes mounting hardware
  • Gold-plated contacts


Specifications:

  • 1x Panel-Mountable Female DisplayPort Socket
  • 1x Female DisplayPort Socket
  • Supports resolutions up to 4K UHD @ 60Hz
  • RoHS Compliant
  • Embedded 4-40 nuts with mounting screws included
  • Allowable panel depth: 2.5mm (full mating)
  • Recommended screw installation: hand tighten, 2.0 in-lbs maximum torque


RoHS Compliant
REACH Compliant
2560x1600 Capable
4K UHD Capable
