Ventilator Manufacturing Support

DataPro Help > Ventilator Manufacturing Support

Ventilator Manufacturing Support

Ventilator Manufacturing Support

DataPro works with medical device manufacturers from around the world on projects ranging from wiring and cabling to enclosure manufacturing and component integration.

Our tightly integrated engineering and production process lets us quickly design and produce a prototype of your product, or scale up an existing design to full production. We're ISO 9001:2015 certified in Manufacturing, as well as Design and Development, allowing us to help you at every stage, and turn orders around in days rather than weeks!

Pelican Case Integration


OP-Vent Installed in a Pelican Case

Waterproof and virtually indestructible, Pelican cases are the perfect enclosure for a portable ventilator or other medical device that requires rugged protection.

DataPro is a Pelican Authorized Distributor, and we specialize in Pelican Case Panels, Pelican Case Modification, and component integration.

Here are some of the case-related products and services we offer:
  • Case Panels, sub-panels, and interior structures
  • Exterior panels and inlets
  • LCD screen installation
  • Custom cabling and wiring
  • Tablet PC and SBC integration
  • Assembly, testing, and inspection
  • We also work with Storm, Nanuk, Seahorse, and SKB cases


Custom Manufacturing Services


Professional Engineering & Design

Professional Engineering & Design

DataPro's team of in-house engineers is ready to help with every step of the process. From development support to manufacturing and quality assurance, we're prepared to make your project a reality.

  • Project management
  • New designs or adaptation of existing plans
  • Finite element analysis and optimization
  • Component and material sourcing
  • Components, subassemblies, or complete assemblies
Medical Device Prototyping & Production

Medical Device Prototyping & Production

Our integrated design and manufacturing process, fast turnaround, and professional manufacturing support make us the perfect one-stop shop for everything from prototype builds and mockups to full production runs.

  • No minimum order quantities
  • Quick quote-to-order turnaround
  • Rush production available
  • 3 and 4-Axis Precision CNC Milling
  • CNC Lathe Machining
  • Metal bending
  • Laser marking
  • Injection mold design
  • Cable and harness fabrication
  • In-house assembly, testing, and inspection
Testing & Quality Assurance

Testing & Quality Assurance

Quality is our top priority, both for our products, and for yours. We extensively verify specifications via in-process inspection and post-production QA. For more information about QA and inspection, see our Value Added Services page.

  • Wire Continuity Testing
  • Physical Property Testing (hardness, pull tests)
  • CMM Inspection
  • Throughput/Performance Testing
  • Spec Conformance
  • Tolerance Inspection

Case Study: OP-Vent



Case Study

The OP-Vent portable ventilator is a revolutionary design by Nvidia Chief Scientist Dr. Bill Dally. It uses mostly off-the-shelf and 3D printed parts, plus a little custom software, and is both low-cost and easy to assemble.

Case Study

The OP-Vent


OP-Vent's design called for it to be installed on a panel inside of a Pelican case, but didn't include a design for the panel or instructions for mounting.


Case Study

DataPro's Design


We applied our experience working with Pelican panels and equipment integration, and designed a panel that could mount the necessary hardware, while giving access to controls, and air connection points.


Case Study

Producing a Mockup


As we didn't want to affect the supply of components, we purchased only the most readily available parts that would be interfacing with the panel, and began test-fitting. After a couple of quick iterations, we settled on a final design.


Case Study

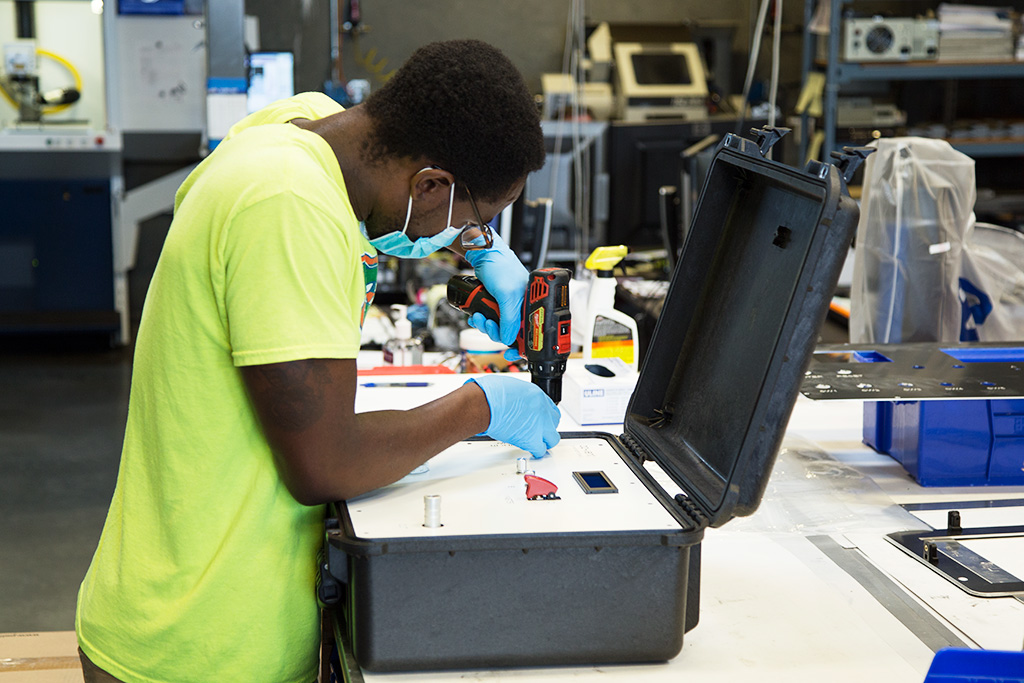

Final Assembly

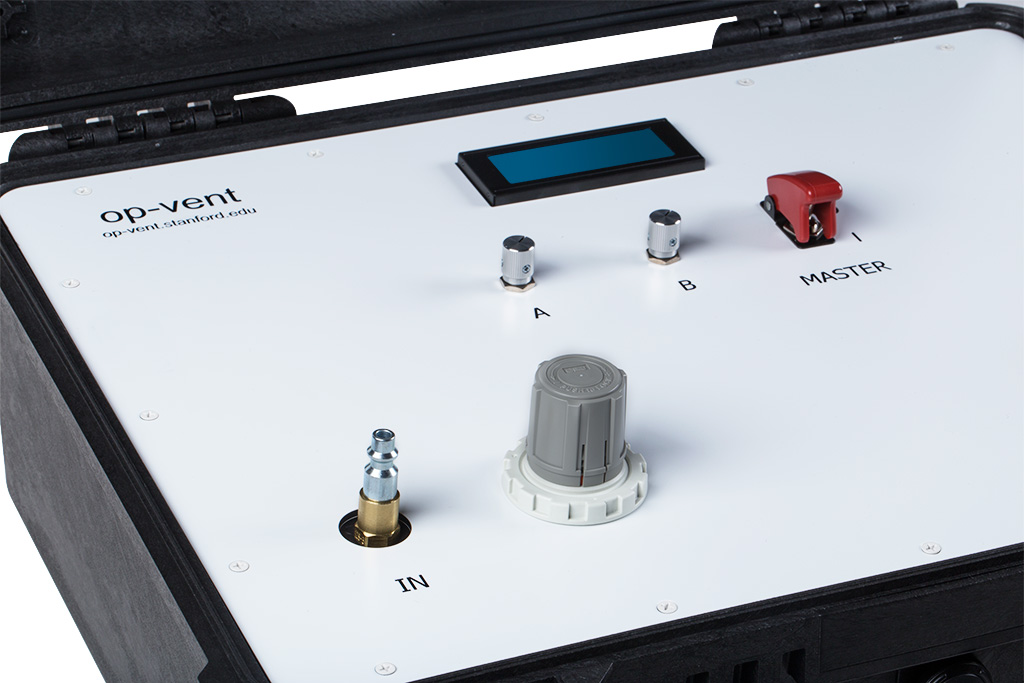

The final version of our mockup was assembled and installed in a Pelican 1550 Case. We also fitted it with a side-mounted power inlet.

You can download our designs here!
