Pelican™ cases are the perfect rugged platform for installation of electronics and equipment. From UAV ground stations and maintenance equipment, to pyrotechnic firing systems and solar power systems, these durable cases are used across a wide range of industries. DataPro can help with planning, design, and installation of electronics, equipment, ports, and cabling solutions. We also provide case panels, inlets, and weatherproof connectors.
We also work with popular brands such as Nanuk, Seahorse, and SKB.
We also work with popular brands such as Nanuk, Seahorse, and SKB.
Custom Cases & Panels Gallery
Case Panels & Panel Installation
We carry a full line of blank panels for Pelican, Storm, Nanuk, Seahorse, and SKB cases, and can customize any of them via our Online Plate Designer.
We also carry panel-ready Pelican cases that have been modified to accept any of our standard panels with no drilling or gluing required.
We also carry panel-ready Pelican cases that have been modified to accept any of our standard panels with no drilling or gluing required.
Panel Frame & Bracket Installation
We offer mounting solutions for all of our panels:- Panel Frame Installation
- Panel-Ready Pelican Cases with preinstalled Brackets
- Pelican Panel Frames
- Screw-in Brackets
- Adhesive Brackets

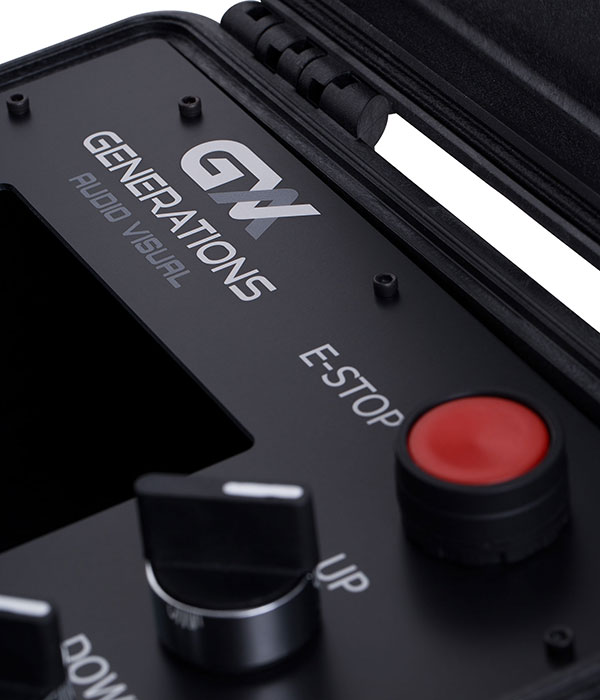

Case Panels
Case Panels can be purchased blank, or customized via our Online Plate Designer. For more advanced panels and enclosures, please contact us for a quote. We also offer engineering and design services.
Interior Sub-Panels
Add an interior sub-panel to hold electronics or parts, and help organize your case.We also offer Sub-Panel Installation.
Side Cutouts & Inlets
Modifying the sides of the case can give you more options for ports and connectors.

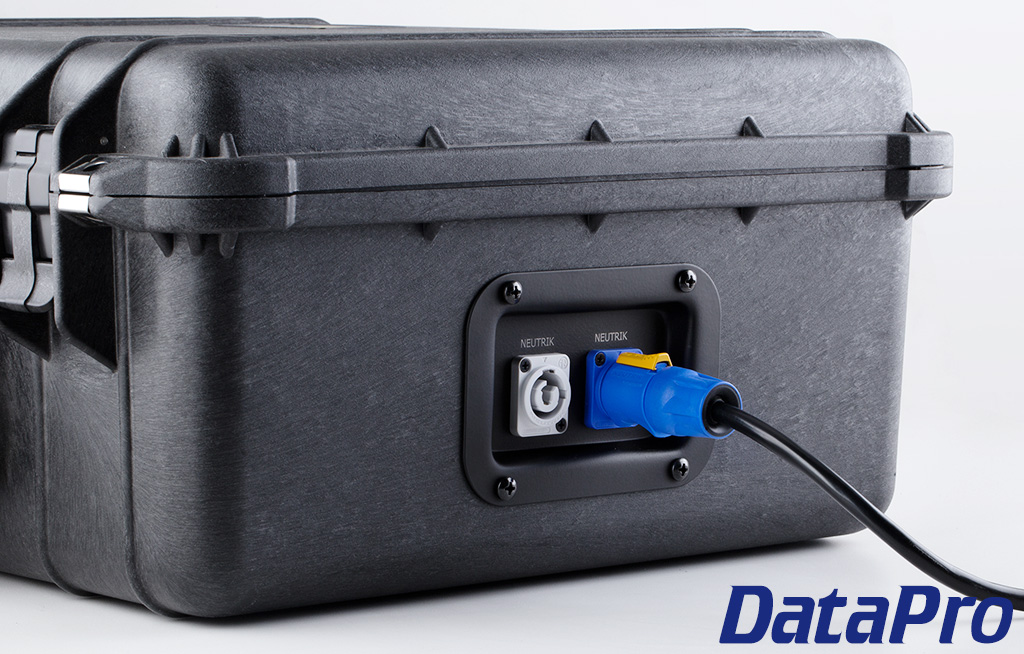

Side Cutouts
Make your case usable even when closed with cutouts around the sides. Perfect for power inlets.
Inlets & Side Panels
DataPro can produce nearly any kind of internal or external structure you may need to mount connectors and electronics, including inlet boxes, internal partitions, and hinged panels.Check out our Recessed Dish Panels!
Equipment Mounting & Installation
Internal features like sub-plates, equipment mounting, and other structure.
Equipment Mounting
Mount equipment on internal panels, or directly to the case with press-fit components.

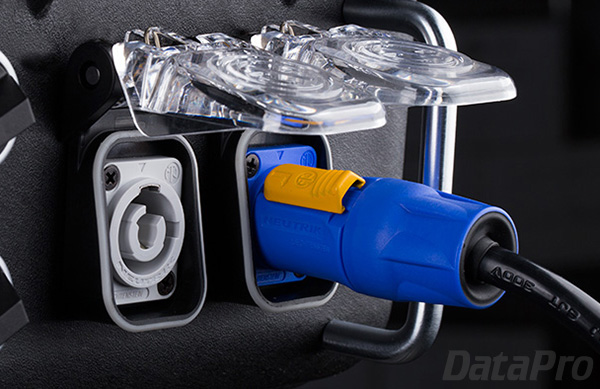

Solar & Power Components
We carry a variety of components that can be useful in the construction of solar charge controllers and other power-related applications.
LCD Screen Integration
Installing a display in your case can be a big project - clearances, cabling, and overall fit need to be perfect. Our engineering and design team can help ensure that the process goes smoothly. Questions about installing a display in your Pelican case? Check out our FAQ!
Keyboard and Control Integration
Create the ultimate clean install by integrating keyboards, joysticks, touchpads, and more directly into the panel. We can help with sourcing, clearances, power, and more.Waterproofing
Most modifications that involve cutting into a hard case will compromise its waterproofing to some degree. This can include the installation of brackets, side cutouts, sub-panels, etc.
If your requirements involve water or dust resistance in the final product, please contact us for options. We also carry a wide variety of IP-rated cables and connectors.
If your requirements involve water or dust resistance in the final product, please contact us for options. We also carry a wide variety of IP-rated cables and connectors.
Request a Quote
Our Sales department and professional engineering staff are available to quote your project and assist with design.
To begin the quoting process, just get in touch with our Sales department. Here are some things to consider when making a quote request:
- What equipment or components do you need to install in the case?
- Do you require the case to be fully waterproof when closed? Open?
- Do you have specific requirements regarding the depth of your panel?
Case Dimensions & Options
Pelican Protector Case Dimensions
Pelican Storm Case Dimensions
| Exterior Dimensions | Interior Dimensions | Products & Services | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Case Model | Ext. Length | Ext. Width | Ext. Depth | Int. Length | Int. Width | Int. Depth | Lid Depth | Base Depth | Interior Volume | Empty Weight | Case | Panel Mounting | Panel | Installation & Modifications |
| iM2050 | 29.97 | 24.89 | 11.94 | 24.13 | 19.05 | 10.8 | 3.81 | 6.99 | 4965 | 1.23 | iM2050 | Panel Frame Bracket Kit | Buy Panel | Available |
| iM2075 | 29.97 | 24.89 | 19.56 | 24.13 | 19.05 | 18.42 | 3.81 | 14.61 | 8467 | 1.5 | iM2075 | Panel Frame Bracket Kit | Buy Panel | Available |
| iM2100 | 36.07 | 28.96 | 16.51 | 33.02 | 23.37 | 15.24 | 5.08 | 10.16 | 11760 | 1.91 | iM2100 | Panel Frame Bracket Kit | Buy Panel | Available |
| iM2200 | 41.15 | 32.26 | 16.76 | 38.1 | 26.67 | 15.24 | 5.08 | 10.16 | 15486 | 2.23 | iM2200 | Panel Frame Bracket Kit | Buy Panel | Available |
| IM2275 | 38.74 | 39.37 | 25.15 | 35.86 | 33.5 | 25.15 | 8.13 | 16 | 30213 | 3.63 | IM2275 | Panel Frame Bracket Kit | Buy Panel | Available |
| iM2300 | 46.23 | 35.31 | 17.02 | 43.18 | 29.72 | 15.75 | 5.08 | 10.67 | 20212 | 2.68 | iM2300 | Panel Frame Bracket Kit | Buy Panel | Available |
| iM2306 | 46.23 | 21.34 | 17.02 | 43.18 | 16 | 15.75 | 5.08 | 10.67 | 10881 | 1.96 | iM2306 | Panel Frame Bracket Kit | Buy Panel | Available |
| iM2370 | 50.8 | 37.34 | 14.73 | 46.23 | 30.73 | 13.21 | 4.32 | 8.89 | 18767 | 2.59 | iM2370 | Panel Frame Bracket Kit | Buy Panel | Available |
| iM2400 | 48.77 | 38.61 | 18.54 | 45.72 | 33.02 | 17.02 | 5.08 | 11.94 | 25695 | 2.95 | iM2400 | Panel Frame Bracket Kit | Buy Panel | Available |
| iM2450 | 48.77 | 38.61 | 22.86 | 45.72 | 33.02 | 21.34 | 5.08 | 16.26 | 32216 | 3.36 | iM2450 | Panel Frame Bracket Kit | Buy Panel | Available |
| iM2500 | 55.12 | 35.81 | 22.61 | 52.07 | 29.21 | 18.29 | 5.08 | 13.21 | 27818 | 5.04 | iM2500 | Panel Frame Bracket Kit | Buy Panel | Available |
| iM2600 | 53.85 | 40.64 | 21.08 | 50.8 | 35.56 | 19.56 | 5.08 | 14.48 | 35334 | 3.86 | iM2600 | Panel Frame Bracket Kit | Buy Panel | Available |
| iM2620 | 53.85 | 40.64 | 26.92 | 50.8 | 35.56 | 25.4 | 5.08 | 20.32 | 45884 | 5.67 | iM2620 | Panel Frame Bracket Kit | Buy Panel | Available |
| iM2700 | 62.48 | 50.04 | 21.84 | 55.88 | 43.18 | 20.32 | 5.08 | 15.24 | 49030 | 5.04 | iM2700 | Panel Frame Bracket Kit | Buy Panel | Available |
| iM2720 | 62.48 | 50.04 | 29.72 | 55.88 | 43.18 | 25.4 | 5.08 | 20.32 | 61288 | 7.63 | iM2720 | Panel Frame Bracket Kit | Buy Panel | Available |
| iM2750 | 62.48 | 50.04 | 36.58 | 55.88 | 43.18 | 32.26 | 5.08 | 27.18 | 77840 | 8.4 | iM2750 | Panel Frame Bracket Kit | Buy Panel | Available |
| iM2875 | 63.25 | 60.2 | 33.27 | 57.15 | 53.59 | 28.96 | 5.08 | 23.88 | 88695 | 9.12 | iM2875 | Panel Frame Bracket Kit | Buy Panel | Available |
| iM2950 | 79.5 | 51.82 | 30.99 | 73.66 | 45.72 | 26.67 | 5.08 | 21.59 | 89817 | 9.44 | iM2950 | Panel Frame Bracket Kit | Buy Panel | Available |
| iM2975 | 79.5 | 51.82 | 39.37 | 73.66 | 45.72 | 35.05 | 5.08 | 29.97 | 118039 | 10.35 | iM2975 | Panel Frame Bracket Kit | Buy Panel | Available |
| iM3075 | 84.58 | 61.98 | 49.02 | 75.69 | 52.83 | 45.21 | 10.16 | 34.92 | 180781 | 14.29 | iM3075 | Panel Frame Bracket Kit | Buy Panel | Available |
| iM3100 | 101.09 | 41.91 | 17.02 | 92.71 | 35.56 | 15.24 | 5.08 | 10.16 | 50243 | 6.9 | Contact Us | Bracket Kit | Contact Us | Available |
| iM3200 | 119.89 | 41.91 | 17.02 | 111.76 | 35.56 | 15.24 | 5.08 | 10.16 | 60567 | 8.03 | Contact Us | Bracket Kit | Contact Us | Available |
| iM3220 | 119.89 | 41.91 | 23.37 | 111.76 | 35.56 | 21.59 | 5.08 | 16.51 | 85803 | 9.26 | Contact Us | Bracket Kit | Contact Us | Available |
| iM3300 | 136.65 | 41.91 | 17.02 | 128.27 | 35.56 | 15.24 | 5.08 | 10.16 | 69514 | 8.67 | Contact Us | Bracket Kit | Contact Us | Available |
| iM2435 | 47.32 | 23.5 | 41.91 | 44.45 | 16.51 | 39.37 | 5.08 | 34.29 | 28892 | 4.54 | Contact Us | Bracket Kit | Contact Us | Available |
| iM2050GP1 | 29.97 | 24.89 | 11.94 | 24.13 | 19.05 | 10.8 | 3.81 | 6.99 | 4965 | 1.23 | iM2050GP1 | Bracket Kit | Buy Panel | Available |
| iM2050GP2 | 29.97 | 24.89 | 11.94 | 24.13 | 19.05 | 10.8 | 3.81 | 6.99 | 4965 | 1.23 | iM2050GP2 | Bracket Kit | Buy Panel | Available |
| iM3410 | 146.66 | 32.28 | 16.94 | 138.43 | 25.4 | 15.24 | 5.08 | 10.16 | 53586 | 8.17 | Contact Us | Bracket Kit | Contact Us | Available |
| iM3300RFL | 136.65 | 41.91 | 17.02 | 128.27 | 35.56 | 15.24 | 5.08 | 10.16 | 69514 | 8.67 | Contact Us | Bracket Kit | Contact Us | Available |
| iM3300SGN | 136.65 | 41.91 | 17.02 | 128.27 | 35.56 | 15.24 | 5.08 | 10.16 | 69514 | 8.67 | Contact Us | Bracket Kit | Contact Us | Available |
Pelican Air Case Dimensions
| Exterior Dimensions | Interior Dimensions | Products & Services | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Case Model | Ext. Length | Ext. Width | Ext. Depth | Int. Length | Int. Width | Int. Depth | Lid Depth | Base Depth | Interior Volume | Empty Weight | Case | Panel Mounting | Panel | Installation & Modifications |
| 1465 | 20.83 | 12.62 | 12.75 | 18.62 | 9.99 | 10.93 | 4.94 | 5.99 | 2033 | 7.12 | Buy Case | Panel-Ready Case Bracket Kit | Available | Available |
| 1485 | 19.17 | 12.8 | 6.89 | 17.75 | 10.18 | 6.15 | 1.8 | 4.35 | 1111 | 4.57 | Buy Case | Panel-Ready Case Bracket Kit | Available | Available |
| 1506 | 20.12 | 12.02 | 8.56 | 18.7 | 9.4 | 7.8 | 2 | 5.8 | 1371 | 5.35 | Buy Case | Panel-Ready Case Bracket Kit | Available | Available |
| 1507 | 16.87 | 14.1 | 9.27 | 15.15 | 11.38 | 8.52 | 2.03 | 6.49 | 1469 | 5.24 | Buy Case | Panel-Ready Case Bracket Kit | Available | Available |
| 1525 | 21.96 | 13.97 | 7.49 | 20.5 | 11.31 | 6.75 | 2 | 4.75 | 1565 | 5.99 | Buy Case | Panel-Ready Case Bracket Kit | Available | Available |
| 1535 | 21.96 | 13.97 | 8.98 | 20.39 | 11.2 | 7.21 | 2 | 5.21 | 1647 | 8.69 | Buy Case | Panel-Ready Case Bracket Kit | Available | Available |
| 1555 | 24.76 | 15.46 | 8.24 | 23 | 12.75 | 7.5 | 2 | 5.5 | 2199 | 7.37 | Buy Case | Panel-Ready Case Bracket Kit | Available | Available |
| 1556 | 23.43 | 13.52 | 10.57 | 21.63 | 10.76 | 8.97 | 2 | 6.97 | 2088 | 9.75 | Buy Case | Panel-Ready Case Bracket Kit | Available | Available |
| 1557 | 19.18 | 15.79 | 10.5 | 17.33 | 13 | 9.75 | 2 | 7.7 | 2197 | 6.60 | Buy Case | Panel-Ready Case Bracket Kit | Available | Available |
| 1605 | 28.87 | 16.77 | 9.12 | 26 | 14 | 8.38 | 2 | 6.38 | 3050 | 9.28 | Buy Case | Panel-Ready Case Bracket Kit | Available | Available |
| 1606 | 27.42 | 15.13 | 11.83 | 24.54 | 12.3 | 10.22 | 2 | 8.22 | 3085 | 12.45 | Buy Case | Panel-Ready Case Bracket Kit | Available | Available |
| 1607 | 24.13 | 18.8 | 13.25 | 21.05 | 15.81 | 11.63 | 2 | 9.6 | 3870 | 13.20 | Buy Case | Panel-Ready Case Bracket Kit | Available | Available |
| 1615 | 32.58 | 18.4 | 11.02 | 29.59 | 15.5 | 9.38 | 2 | 7.38 | 4302 | 14.06 | Buy Case | Panel-Ready Case Bracket Kit | Available | Available |
| 1626 | 31.12 | 17.05 | 13.33 | 28.14 | 14.1 | 11.72 | 2 | 9.72 | 4650 | 14.65 | Buy Case | Panel-Ready Case Bracket Kit | Available | Available |
| 1637 | 26.61 | 20.65 | 14.87 | 23.43 | 17.55 | 13.25 | 2 | 11.2 | 5448 | 15.20 | Buy Case | Panel-Ready Case Bracket Kit | Available | Available |
| 1745 | 46.69 | 19.36 | 8.73 | 44.01 | 16.77 | 7.94 | 2.53 | 5.47 | 5860 | 17.26 | Contact Us | Bracket Kit | Contact Us | Available |
| 1465EMS | 20.83 | 12.62 | 12.75 | 18.62 | 9.99 | 10.93 | 4.94 | 5.99 | 2033 | 13.30 | Buy Case | Bracket Kit | Available | Available |
| 1745BOW | 47.25 | 19.38 | 9.12 | 44.01 | 16.77 | 7.94 | 0 | 0 | 5860 | 0.00 | Contact Us | Bracket Kit | Contact Us | Available |
| Exterior Dimensions | Interior Dimensions | Products & Services | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Case Model | Ext. Length | Ext. Width | Ext. Depth | Int. Length | Int. Width | Int. Depth | Lid Depth | Base Depth | Interior Volume | Empty Weight | Case | Panel Mounting | Panel | Installation & Modifications |
| 1465 | 52.91 | 32.05 | 32.39 | 47.29 | 25.37 | 27.76 | 12.55 | 15.21 | 33305 | 3.23 | Buy Case | Panel-Ready Case Bracket Kit | Available | Available |
| 1485 | 48.69 | 32.51 | 17.5 | 45.09 | 25.86 | 15.62 | 4.57 | 11.05 | 18213 | 2.08 | Buy Case | Panel-Ready Case Bracket Kit | Available | Available |
| 1506 | 51.1 | 30.53 | 21.74 | 47.5 | 23.88 | 19.81 | 5.08 | 14.73 | 22470 | 2.43 | Buy Case | Panel-Ready Case Bracket Kit | Available | Available |
| 1507 | 42.85 | 35.81 | 23.55 | 38.48 | 28.91 | 21.64 | 5.16 | 16.48 | 24074 | 2.38 | Buy Case | Panel-Ready Case Bracket Kit | Available | Available |
| 1525 | 55.78 | 35.48 | 19.02 | 52.07 | 28.73 | 17.15 | 5.08 | 12.07 | 25656 | 2.72 | Buy Case | Panel-Ready Case Bracket Kit | Available | Available |
| 1535 | 55.78 | 35.48 | 22.81 | 51.79 | 28.45 | 18.31 | 5.08 | 13.23 | 26978 | 3.95 | Buy Case | Panel-Ready Case Bracket Kit | Available | Available |
| 1555 | 62.89 | 39.27 | 20.93 | 58.42 | 32.39 | 19.05 | 5.08 | 13.97 | 36047 | 3.35 | Buy Case | Panel-Ready Case Bracket Kit | Available | Available |
| 1556 | 59.51 | 34.34 | 26.85 | 54.94 | 27.33 | 22.78 | 5.08 | 17.7 | 34204 | 4.43 | Buy Case | Panel-Ready Case Bracket Kit | Available | Available |
| 1557 | 48.72 | 40.11 | 26.67 | 44.02 | 33.02 | 24.77 | 5.08 | 19.56 | 36004 | 3.00 | Buy Case | Panel-Ready Case Bracket Kit | Available | Available |
| 1605 | 73.33 | 42.6 | 23.16 | 66.04 | 35.56 | 21.29 | 5.08 | 16.21 | 49997 | 4.21 | Buy Case | Panel-Ready Case Bracket Kit | Available | Available |
| 1606 | 69.65 | 38.43 | 30.05 | 62.33 | 31.24 | 25.96 | 5.08 | 20.88 | 50549 | 5.65 | Buy Case | Panel-Ready Case Bracket Kit | Available | Available |
| 1607 | 61.29 | 47.75 | 33.66 | 53.47 | 40.16 | 29.54 | 5.08 | 24.38 | 63433 | 5.99 | Buy Case | Panel-Ready Case Bracket Kit | Available | Available |
| 1615 | 82.75 | 46.74 | 27.99 | 75.16 | 39.37 | 23.83 | 5.08 | 18.75 | 70514 | 6.38 | Buy Case | Panel-Ready Case Bracket Kit | Available | Available |
| 1626 | 79.04 | 43.31 | 33.86 | 71.48 | 35.81 | 29.77 | 5.08 | 24.69 | 76202 | 6.65 | Buy Case | Panel-Ready Case Bracket Kit | Available | Available |
| 1637 | 67.59 | 52.45 | 37.77 | 59.51 | 44.58 | 33.66 | 5.08 | 28.45 | 89298 | 6.90 | Buy Case | Panel-Ready Case Bracket Kit | Available | Available |
| 1745 | 118.59 | 49.17 | 22.17 | 111.79 | 42.6 | 20.17 | 6.43 | 13.89 | 96055 | 7.83 | Contact Us | Bracket Kit | Contact Us | Available |
| 1465EMS | 52.91 | 32.05 | 32.39 | 47.29 | 25.37 | 27.76 | 12.55 | 15.21 | 33305 | 6.04 | Buy Case | Bracket Kit | Available | Available |
| 1745BOW | 120.02 | 49.23 | 23.16 | 111.79 | 42.6 | 20.17 | 0 | 0 | 96055 | 0.00 | Contact Us | Bracket Kit | Contact Us | Available |
