DVI KVM Switch with PS2: 2 CPU

> KVM Switches, DVI Digital Electronics
DVI KVM Switch with PS2: 2 CPU

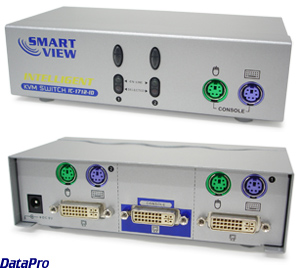

KND-102C   DVI KVM Switch with PS2   2:1 $ 159.00   13 in stock   Add to Cart

This KVM switch allows a user to control two computers from one console, including a shared monitor, mouse, and keyboard. It is a Smart-View brand switch, and supports video over DVI and keyboard/mouse over PS2.

It emulates mouse and keyboard for automatic boot-up, so the computers will successfully POST and load even though there is no keyboard or mouse directly connected. It supports digital flat-panel montiors via DVI, and selects any computer with the use of hot keys or by manual push-buttons. Like all our KVM switches, this DVI/PS2 switch is completely transparent to the computers. There is no software to install, and no problems with software or operating system compatibility.

These units can be cascaded with our other models of KVMs for a complex matrix of switches and computers.

No external power supply is required, as these units are powered through their keyboard connections to the CPUs. External power supplies are available upon request, however, to be purchased separately and used for backup.

We can also supply a European-style power supply when necessary.


  • Max. Resolution: 1600x1200
  • Power Supply: 9v DC, 500 MA (Optional)
  • Selection made by: Push-button or keyboard hot-keys
  • LED Information: Power (1, for the KND-102) Selected (2, one for each CPU)
  • Scan Interval: Selectable at 3, 8, 15 and 30 seconds
  • Keyboard Connector: PS2 MD06F (6-pin Mini-Din socket)
  • Mouse Connector: PS2 MD06F (6-pin Mini-Din socket)
  • Monitor Connector: DVI-I M to each CPU, DVI-I F to monitor
  • Enclosure: Metal Enclosure
  • Dimensions: 40mm x 124mm x 70mm
  • Weight: 420 grams
