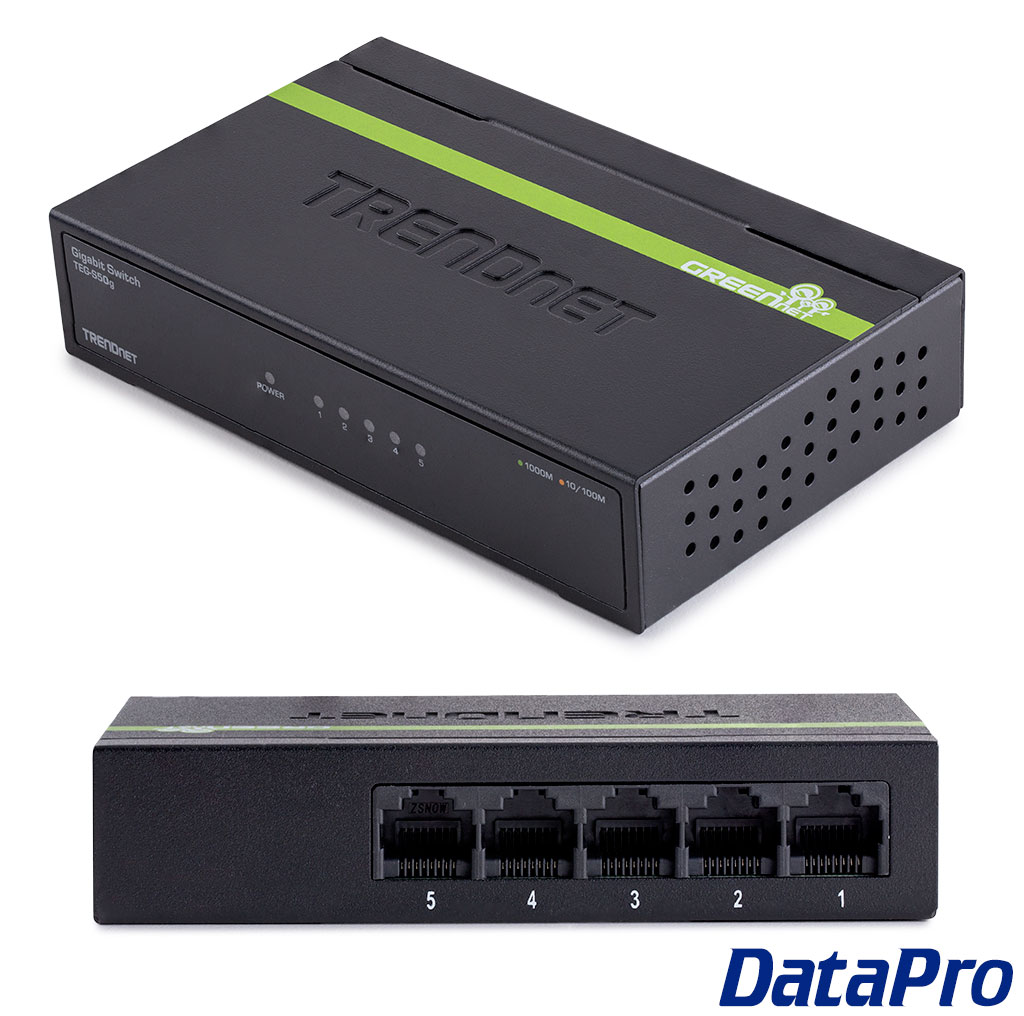

Gigabit Ethernet Switch


Build a blazing-fast home or office network with our Gigabit Ethernet switches! These switches support Jumbo Frames and can connect at 10/100/1000 speeds.

EHG0-05E   Ethernet Gigabit 5-Port Switch   5P $ 39.95   1 in stock   Add to Cart
EHG0-08E   Ethernet Gigabit 8-Port Switch
Not stocked. Special order only.
  8P $ 49.95 Call for ETA   Backorder

Build out your network with next-generation speeds using DataPro's high-end Ethernet switches. These high-performance network switches can support full-duplex and half-duplex data rates: 10/20/100/200/1000/2000-megabit. All ports are auto-sensing, so you can connect standard or cross-over cables between the switch and any device (including other switches).

GREENnet power-saving technology reduces power consumption without compromising performance by using less power for unconnected ports and port with devices that are turned off. It can also reduce the transmission power for ports connected with short cables.

These switches have three LEDs to indicate Link/Activity, 100Mbps, and 1000Mbps modes. (A Link light by itself indicates 10Mbps).

We also have rack-mount 16 and 24-port switches available.


Features:

  • 5x or 8x 10/20/100/200/1000/2000Mbps Auto Negotiation Gigabit Ethernet ports
  • 104KBytes RAM buffer
  • 4K MAC address table size
  • Reduced power consumption of up to 70%
  • IEEE 802.3x Flow Control support
  • Jumbo Frame support up to 12KBytes
  • Sturdy metal housing
  • Plug & Play


Specifications:

  • Standards: IEEE 802.3 10Bate-T; IEEE 802.3u 100Base-TX; IEEE 802.3ab 1000Base-T; IEEE 802.3x Flow Control
  • Network Media:
    • Ethernet: Cat-3/4/5 up to 100m
    • Fast Ethernet: Cat-5 up to 100m
    • Gigabit Ethernet: Cat-5/5e/6 up to 100m
  • Data Rates:
    • Ethernet: 10Mbps / 20 Mbps (half / full-duplex)
    • Fast Ethernet: 100Mbps / 200 Mbps (half / full-duplex)
    • Gigabit Ethernet: 2000 Mbps (full-duplex)
  • Protocol / Topology: CSMA/CD, Star
  • Power Consumption: 3.75 Watts (max)
  • Switch Fabric: 10Gbps forwarding capacity
  • Interface: 5 x 10/20/100/200/1000/2000Mbps Auto-MDIX RD-45 ports
  • Data RAM Buffer: 104KBytes
  • Filtering Table: 4K entries
  • Diagnostic LED: Power, Link/Activity, 100Mbps, 1000Mbps
  • Power Adapter: 5V DC, 1A external power adapter
  • Dimensions: 171mm x 98mm x 28mm (6.7in x 3.86in x 1.1in)
  • Weight: 430g (15.2oz)
  • Temperature:
    • Operating: 0°C - 40°C (32°F - 104°F)
    • Storage: -10°C - 70°C (14°F - 158°F)
  • Humidity: 5% - 90% (non-condensing)
  • Certification: FCC, CE
