USB 2.0 to HDMI Video Adaptor


Categories:
> USB Adaptors, DVI Digital Electronics
USB 2.0 to HDMI Video Adaptor

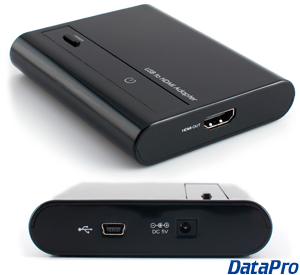

The DataPro USB to HDMI adaptor is a convenient and portable way to increase your display capacity without extra video outputs. Ideal for laptops that need additional monitor support, this HDMI via USB is compatible with any modern Windows machine.

UDH-101   USB 2.0 to HDMI Video Adaptor   EACH $ 99.00   20 in stock   Add to Cart

Show everything you want to show with this hardware video adaptor, which provides your Windows computer with a hot-swappable external display output using only a USB 2.0 port! Madness!

This handy little device supports HDTV and PC resolutions up to 1080p (1920x1080 @ 60Hz), and can be set to mirror or extend your Windows desktop. After the drivers are installed, the device appears as any other attached monitor, and can be configured to your desired settings. To other applications, the USB adaption is completely transparent.

This type of adaption is great for adding additional screen real estate in a pinch, and especially on computers that are difficult to add expansion slots to (like laptops, all-in-one, and mini computers). Because USB is not as bandwith-saavy as video standards, though, these types of adaptors are best suited for displaying images, web pages, slide shows, and other low-motion screens. They are not so much great with playing video or complex animation, because of buffering and conversion limitations.

The USB to HDMI adaptor is a hot-pluggable USB device, so it can be attached/removed from the computer at any time. Windows will initialize it when plugged in—no reboot required.


Features:

  • Uses only a single USB 2.0 port on computer
  • Outputs up to 1920x1080 @ 60Hz
  • Bus powered: no external power supply needed!
  • Supports desktop mirroring and extension modes
  • Supports display hibernation and suspend modes
  • Up to 6 units can be used simultaneously


Specifications:

  • Input: USB 2.0 Mini-B Female
  • Output: HDMI Female
  • Requires single-core 1.2Ghz CPU or better
  • Supports Windows 2000 and newer (32 and 64 bit)
  • 95.5 x 80 x 18.5 mm
