VGA 8-Way Video Splitter 150 Mhz


Categories:
> Video Splitters

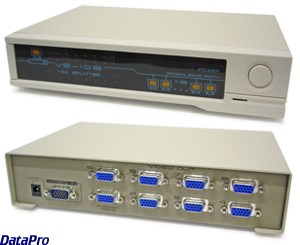

VGA 8-Way Video Splitter  150 Mhz


MSV-108B   VGA Video Boost/Split 150 Mhz   1:8 $ 139.00   9 in stock   Add to Cart

The MSV-108B VGA Splitter/Booster allows a single PC to display on up to eight VGA monitors, each at a distance of up to 165 feet (with the use of appropriate video-grade cabling).

This video splitter mirrors the input signal to all eight outputs at the same resolution and frequency, and boosts the output for reaching long-range monitors.

There is no software to install and no problems with software compatibility.

A North-American style 110-volt power supply is included.


Specifications:

  • Device #1: CPU IBM-PC with VGA/SVGA/XGA video card
  • Device #2: up to 8 units VGA/SVGA/XGA analog monitors
  • I/O Interface: TTL Compatible: Horz & Vert Sync, Analog Signal: RED, GRN, & BLU video
  • Maximum Resolution: 1600 x 1200 @ 70Hz
  • Video Bandwidth: 150 MHz
  • Input Connectors: from CPU: DH15M
  • Output Connectors: to monitors: DH15F x 8
  • Power Consumption: DC 9V, 380mA max (power supply included)
  • Enclosure: Metal
  • Weight: 1200 grams
  • Dimensions: L = 224 mm, W = 152 mm, H = 52 mm
