HDMI Panel Mount Extension Cable CL-2


Categories:
> HDMI Cables, Digital Video Panel-Mount Cables
HDMI Panel Mount Extension Cable CL-2
Add high speed HDMI with Ethernet to your installation with a panel-mount HDMI cable from DataPro. Supports HD, 4K UHD, HDMI 2.0, device control, and more.

1160-01E   HDMI Panel-Mount Ext CL-2   1 ft $ 27.00   1093 in stock   Add to Cart
1160-02E   HDMI Panel-Mount Ext CL-2   2 ft $ 28.00   1067 in stock   Add to Cart
1160-03E   HDMI Panel-Mount Ext CL-2   3 ft $ 29.00   988 available May 2nd   Backorder
1160-04E   HDMI Panel-Mount Ext CL-2   4 ft $ 30.00   450 in stock   Add to Cart
1160-06E   HDMI Panel-Mount Ext CL-2   6 ft $ 32.00   216 in stock   Add to Cart
1160-10E   HDMI Panel-Mount Ext CL-2   10 ft $ 36.00   67 in stock   Add to Cart
1160-15E   HDMI Panel-Mount Ext CL-2   15 ft $ 39.00   195 in stock   Add to Cart
1160-25E   HDMI Panel-Mount Ext CL-2   25 ft $ 59.00   237 in stock   Add to Cart

Note: 15' and 25' lengths may not work at 4K 60Hz with all setups.

The DataPro Panel-Mount High Speed HDMI 2.0 with Ethernet extension cables are the perfect solution for installing high-definition video anywhere you'd like. From DVD players and graphics cards to TVs and projectors.

This cable is the perfect match for our HDMI wall plates.

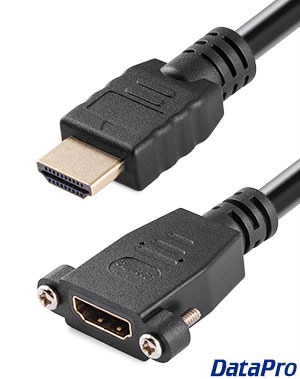

These high-grade shielded cables feature a standard HDMI male connector on one end, to interface with any HDMI-compatible hardware (including outputs such as a DVD, HD-DVD, or Blu-Ray player; a computer; cable TV box; or DVR; and inputs such as LCD flat-screens; plasma displays; and high-definition projectors). The other end of the HDMI cable is a female connector with molded mounting hardware, ideal for securing to an HDMI face plate or bulkhead mount.

These cables are certified for use with HD and UHD video, and can handle advanced HD audio formats like 7.1 PCM, Dolby Digital Plus, Dolby TrueHD, and DTS-HD Master Audio.


Drawings & Models:

PartDownloads
1160PDF Drawing (PDF)STEP Model (STEP)


RoHS Compliant
REACH Compliant
CL2 In-Wall Rated
HDMI 1.4 with Ethernet
2560x1600 Capable
4K UHD Capable

Related Products:

Features:

  • Panel-mountable Female HDMI Connector
  • CL-2 rated for in-wall use
  • Includes mounting hardware
  • Gold-plated contacts
  • Shielded against RFI and EMI interference


Specifications:

  • 1x Panel-Mountable Female HDMI Connector
  • 1x Male HDMI Connector
  • Supports resolutions up to 4K UHD @ 60Hz
  • HDMI 2.0 Compatible
  • HDMI with Ethernet
  • HDR10 Compatible
  • 3D Capable
  • Wire Gauge 26 AWG (28 AWG for 1160-03C)
  • RoHS Compliant
  • CL2 rated
  • Embedded 4-40 nuts with mounting screws included
  • Allowable panel depth: 2.5mm (full mating)
  • Recommended screw installation: hand tighten, 2.0 in-lbs maximum torque
