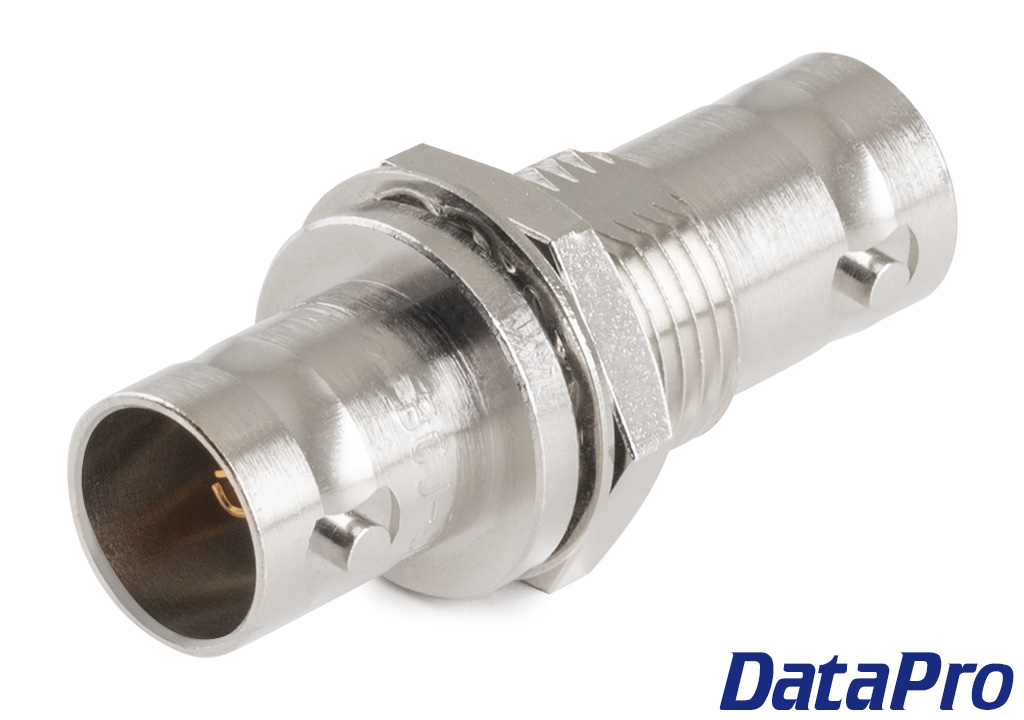

Panel Mount 12G-SDI 75 Ohm BNC Coupler

12-SDI is a high definition format typically used by production studios and videographers. This panel-mountable 75 Ohm BNC coupler is certified to carry 12G-SDI signals, allowing for UHD over BNC.

Part	Downloads
12G-SDI	Drawing (PDF)

Features:

• Solid brass construction
• Gold-plated contacts
• 12G-SDI compatible
• 75 Ohm impedence

Specifications:

• Nickel-plated brass
• Gold-plated copper connectors
• Contact resistance: Center contacts: 6mΩ or less / External contacts: 3mΩ or less
• Return loss: 26dB or more(0 ~ 3GHz) / 20dB or more(0 ~ 6GHz) / 15dB or more(0 ~ 12GHz)
• Contact retention force: 1.5 ~ 3.9N
• Operating temperature: -40 to 185°C (-40° to 85°C)
• Max operating humidity: 90%
