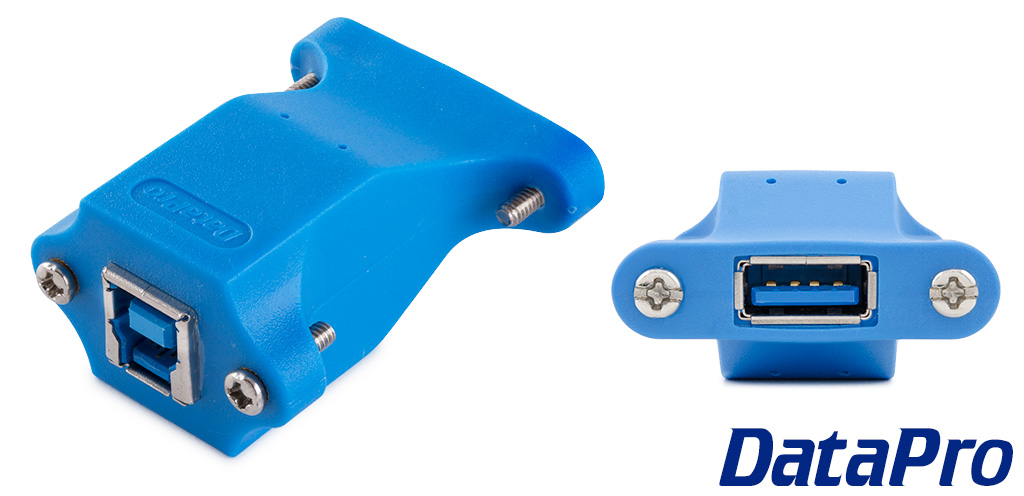

Panel Mount USB 3 A-B Coupler


Categories:
> Screw-mounted Couplers, USB 3.0 and 3.1 Products 		Panel Mount USB 3 A-B Coupler
Enjoy maximum versatility and maximum speed with this unique panel-mount USB coupler.  Featuring a USB 3.0 Type-A female connector on one end, and a USB 3.0 Type-B female connector on the other.

CCP-USB3-AB   Coupler Panel-Mount USB 3.0 AB   EACH $ 11.95   347 in stock   Add to Cart

Enjoy maximum versatility and maximum speed with this unique panel-mount USB passthrough coupler.

Featuring a USB 3.0 Type-A female connector on one end, and a USB 3.0 Type-B female connector on the other, this coupler can be mounted to a bulkhead on either end.  The coupler itself is wired straight through, and will work without special cabling.

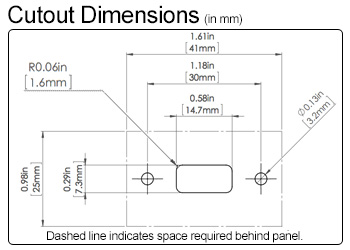

USB A Cutout Dimensions
PDFClick here for PDF version


PDFClick here for PDF version

Drawings & Models:

PartDownloads
CCPUSB3APDF Drawing (PDF)


RoHS Compliant
REACH Compliant
Related Products:

Features:

  • Panel-mountable Female USB Type-A  and Female USB Type-B connectors
  • Includes mounting hardware
  • Gold-plated contacts

Specifications:

  • 1x Female USB Type-A Socket
  • 1x Female USB Type-B Socket
  • USB 3, supports SuperSpeed USB 5Gb/s
  • Backwards compatible with USB 1.1/2.0
  • RoHS Compliant
  • Embedded 4-40 nuts with mounting screws included
  • Allowable panel depth: 2.5mm (full mating)
  • Recommended screw installation: hand tighten, 2.0 in-lbs maximum torque
