USB 3.0 Super-Speed Panel-Mount Extension
Take your USB to the next generation with DataPro's exclusive USB 3.0 panelmount extension cables.

1698-01C   USB 3.0 Panel-Mount A Ext. CL2   1 ft $ 15.95   4754 in stock   Add to Cart
1698-02C   USB 3.0 Panel-Mount A Ext. CL2   2 ft $ 17.95   1543 in stock   Add to Cart
1698-03C   USB 3.0 Panel-Mount A Ext. CL2   3 ft $ 19.95   7048 in stock   Add to Cart
1698-04C   USB 3.0 Panel-Mount A Ext. CL2   4 ft $ 21.95   175 in stock   Add to Cart
1698-06C   USB 3.0 Panel-Mount A Ext. CL2   6 ft $ 23.95   6 in stock   Add to Cart
1698-10C   USB 3.0 Panel-Mount A Ext. CL2   10 ft $ 29.95   312 in stock   Add to Cart
1698-15C   USB 3.0 Panel-Mount A Ext. CL2   15 ft $ 34.95   312 in stock   Add to Cart

Technical Documents

Download Drawing

Download 3D Model

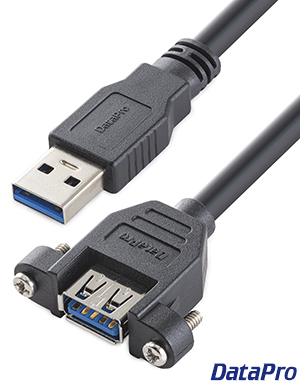

The successor to our popular USB 2.0 panelmount cables, the 1698-series features the same low-profile bulkhead mounting connector but is tested and certified for full USB 3.0 speeds.

This cable assembly features a panel-mounting USB 3.0 A type female jack on one end and a male USB 3.0 A plug on the other. Each connector includes the standard 4-pins for backward-compatibility with USB 2.0, in addition to the 5 high-speed pins for SuperSpeed USB 3.0.

DataPro's extensive line of (often-imitated) panelmount cables are designed for industrial and enthusiast applications where cable terminations should be clean, modular, and easily accessible. Our panelmount USB 3.0 cable is no exception, offering easy installation and termination directly into an OEM frontpanel or any of our custom wall plates.

The panel-mounting USB connector is the identical form-factor to our previous line, so these cables can be integrated into existing designs and installations without trouble.

Please note that if you would like to extend your USB connection more than 15 feet from source to device, you'll need to use an active USB booster cable.


Features:

  • Panel-mountable Female USB Type-A connector
  • CL2 rated for in-wall use
  • Includes mounting hardware
  • Gold-plated contacts
  • Shielded to minimize Electromagnetic / Radio Frequency Interference (EMI / RFI)


Specifications:

  • 1x Panel-Mountable Female USB Type-A Connector
  • 1x Male USB Type-A Connector
  • USB 3.0, supports SuperSpeed USB 5Gb/s
  • Backwards compatible with USB 1.1/2.0
  • Aluminum/Mylar Foil Wrap + Braided Shielding and Drain Wire
  • Wire Gauge 28 & 24 AWG
  • RoHS Compliant
  • CL2 Rated
  • Embedded 4-40 nuts with mounting screws included
  • Allowable panel depth: 2.5mm (full mating)
  • Recommended screw installation: hand tighten, 2.0 in-lbs maximum torque
