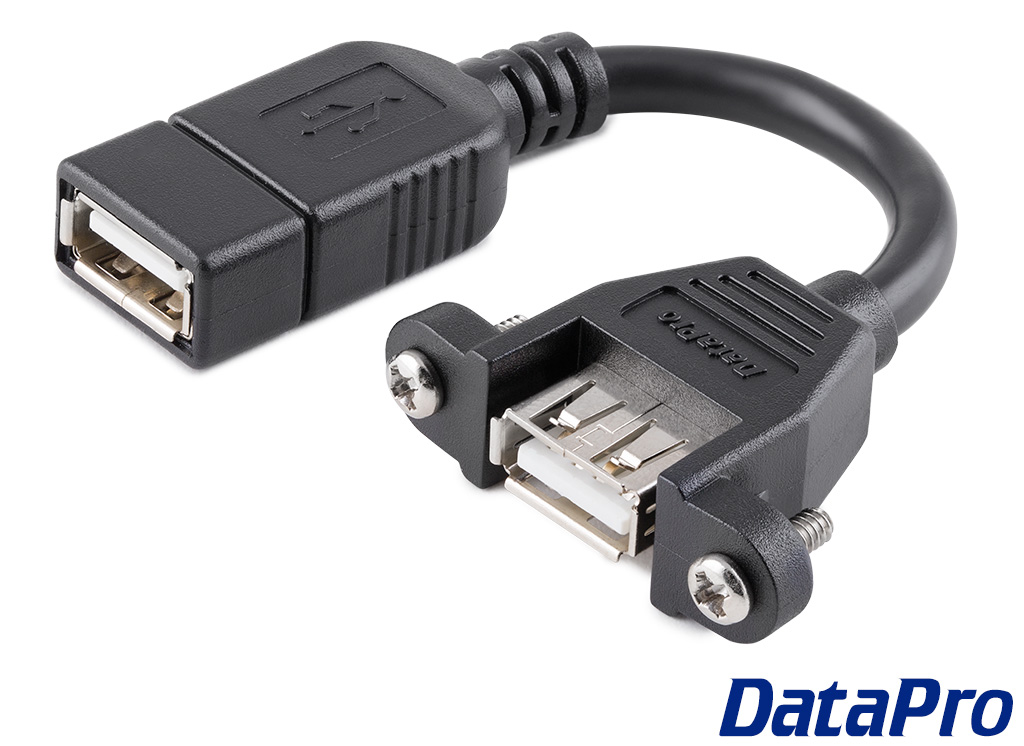

Panel-Mount USB-A 2.0 Coupler


Categories:
> Screw-mounted Couplers, USB 2.0 Cables, Panel-Mount USB-A Cables 		Panel-Mount USB-A 2.0 Coupler
This flexible panel-mount USB 2.0 Type-A coupler lets you add a flexible panel-mount USB 2 Type A port to any plate, panel, or bulkhead.

CCP-USBA-FLX   Coupler Panel-Mount USB-A F/F   5IN $ 7.95   1650 in stock   Add to Cart

Technical Documents

Download Drawing
Download 3D Model

This USB panelmount Type A passthrough coupler is an economical solution to installing a USB jack in a wall plate or custom enclosure.

It is a pass-through connector with a female USB jack on one end and a panel-mounting female USB jack on the other, connected by a short length of flexible cable.





Click here for PDF version


RoHS Compliant
REACH Compliant
CL2 In-Wall Rated
Related Products:

Features:

  • Panel-Mountable Female USB Type-A Connector
  • Flexible, short bend radius
  • CL2 rated for in-wall use
  • Includes mounting hardware
  • Gold-plated contacts

Specifications:

  • USB 1.1/2.0 High-Speed Compatible
  • Max speed 480 Mb/s
  • RoHS compliant
  • CL2 rated
  • Embedded 4-40 nuts with mounting screws included
  • Allowable panel depth: 2.5mm (full mating)
  • Recommended screw installation: hand tighten, 2.0 in-lbs maximum torque
