Rack Mount VGA PS2 and USB Switch: 8 CPU

> KVM Switches
Rack Mount VGA PS2 and USB Switch: 8 CPU

This product has been discontinued or is otherwise unavailable at the moment.
However, we may still be able to source an alternative for you!
Just contact our Sales department with your requirements.

Note: This KVM requires a specific cable to connect to computers. It can be found here.

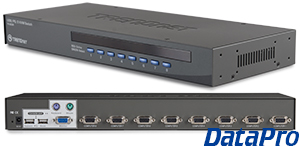

The KNV-168 KVM Switch allows a single user to control eight computers from one console station (VGA monitor, USB or PS2 mouse, and USB or PS2 keyboard).

It features mouse and keyboard emulation for automatic boot up, supports SVGA, VGA, and Multisync monitors, and selects any computer with the use of hot keys or by manual buttons. No additional software or driver is necessary.

The KVM Switch is useful for computer rooms which require access to multiple file servers via one console, factories needing to test and quality check products, and for showroom demo situations.

NOTE: KNV-168 ships with North American type 110 volt power supply.


  • Control up to 8 computers or servers
  • Supports both USB and PS2 on console end
  • Upgradable firmware
  • Keyboard hotkey
  • LED status indicator
  • Mounts on standard 19" rack


  • Power (Supplied with unit) 9v DC, 1000 MA max.
  • Selection made by: Push-button, hotkey
  • Scan Interval: Selectable 10-99 seconds
  • Keyboard Connector: USB 'A' (USB 'A' Type Connector)
  • Mouse Connector: USB 'A' (USB 'A' Type Connector)
  • Monitor Connector: DH15F to each CPU, DH15F to monitor
  • Maximum Resolution: 2048x1436
  • Enclosure: Metal Enclosure
  • Dimensions: 407 x 165 x 45 mm (16 x 6.5 x 1.8 in)
