SCSI 0.8mm LVD Type External


Categories:
> SCSI External Cables
SCSI 0.8mm LVD Type   External


5880-03C   SCSI 0.8mm LVD Type External   3 ft $ 49.00   7 in stock   Add to Cart
5880-06C   SCSI 0.8mm LVD Type External
Not stocked. Special order only.
  6 ft $ 59.00 Call for ETA   Backorder
5880-10C   SCSI 0.8mm LVD Type External
Not stocked. Special order only.
  10 ft $ 69.00 Call for ETA   Backorder

Technical Documents
I agree to the Terms of Service.

Download Drawing

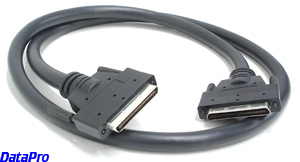

The 5880-series SCSI cable connects two SCSI devices with UHD 0.8 mm connectors. All of these cables are rated for high-speed SCSI-LVD, and are backwards-compatable with non-LVD SCSI as well.

In the event that devices of mismatched speeds are on the same bus, this cable will perform at the fastest operating speed of the slowest device.

This type of connector is commonly called UHD or Ultra-High Density, and also called VHDCI or SCSI-5. It's a pressure-locking connector with a minimal profile, and a considerable space-saver compared to the more monstrous earlier SCSI interfaces.
