USB 2.0 Mini-B 5-pin M/M Cable

> USB 2.0 Cables
USB 2.0 Mini-B 5-pin M/M Cable

1596-03C   USB 2.0 Mini-B 5-pin M/M Cable   3 ft $ 13.95   19 in stock   Add to Cart
1596-06C   USB 2.0 Mini-B 5-pin M/M Cable   6 ft $ 19.95   176 in stock   Add to Cart

Technical Documents

Download Drawing

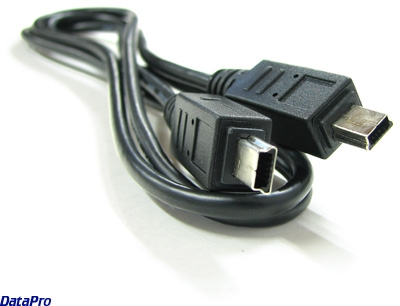

The 1596 series cable is a USB Type Mini 'B' to Mini 'B' cable.

The mini type-B connector, small, roughly square but with bevelled corners, plugs into upstream sockets on certain special devices. This cable has male Mini-B 5-pin connectors on each end, however only four pins are connected through.

The type-B connector is used only for the device end of a removable device, such as between a hub and a camera, but some special circumstances can require the use of a type-B to type-B connection.

This cable is USB 2.0 compliant.


  • Gold-plated contacts


  • USB 1.1/2.0 High-Speed Compatible
  • Max speed 480 Mb/s
  • RoHS compliant
