Data Switch Manual SVHS/SVideo

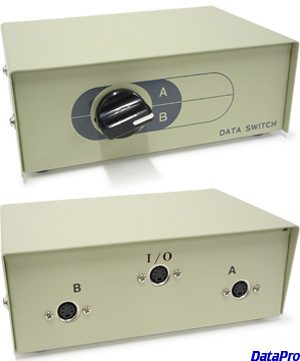

These manual data switches feature a Break-Before-Make rotary knob selector, and fully grounded and shielded female 4-pin Mini-Din SVHS/S-Video connectors in 1:2 or 1:4 configuration.

Break-Before-Make (BBM) prevents short-circuits during the switching process by fully disconnecting each connector before making a new connection. These switches are direction-independent and can function in one-in-many-out or many-in-one-out configurations.

Features:

• Switch between multiple 4-pin Mini-Din SVHS/S-Video connections

Specifications:

• 1:2: 1x in/out 4-pin Mini-Din SVHS/S-Video connector, 2x in/out female 4-pin Mini-Din SVHS/S-Video connectors
• 1:4: 1x in/out female 4-pin Mini-Din SVHS/S-Video1 connector, 4x in/out female 4-pin Mini-Din SVHS/S-Video connectors
• Metal box
