Panel Mount N Type Coupler F-F


Categories:
> Screw-mounted Couplers, Wireless Antenna Cables 		Panel Mount N Type Coupler F-F
Pass an N-Type connection through a plate, panel, or bulkhead with this female-female panel-mount coupler.

CCP-NTYPE   Panel-Mount N-Type Coupler F/F   EACH $ 13.95   101 in stock   Add to Cart

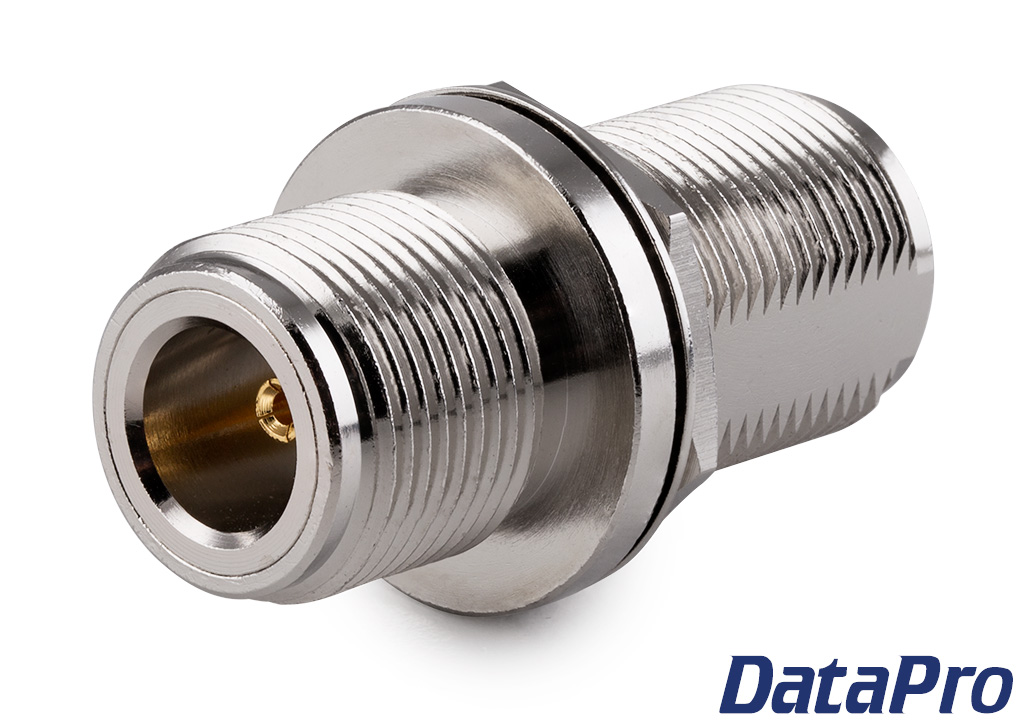

The DataPro CCP-NTYPE is a female to female panel-mount N-Type passthrough adapter designed for seamless routing N-Type connections through plates, panels, or bulkheads.

This panel-mount connector is capable handing frequencies up to 11 GHz and has a normal impedance of 50 ohms.

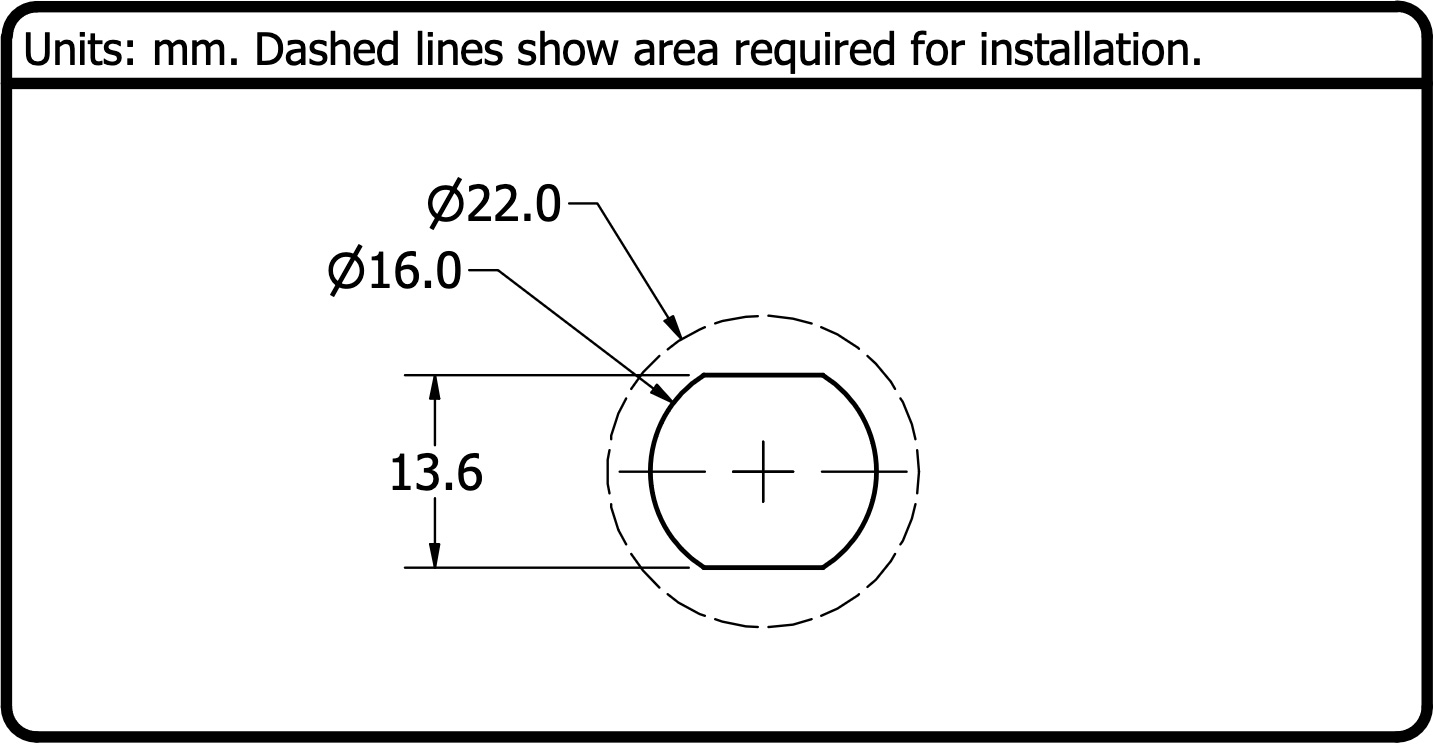

N-Type Cutout Dimensions
PDFClick here for PDF version

Drawings & Models:

PartDownloads
CCPNTYPEPDF Drawing (PDF)


RoHS Compliant
Related Products:

Features:

  • Pass an N-Type connection through a plate, panel, or bulkhead

Specifications:

  • 1x female N-Type connector
  • 1x female panel-mount N-Type connector
  • Nickel-plated for corrosion resistance
  • Gold-plated center contact
  • Mounts on surfaces up to 0.125" (3.17mm) thick
  • Insertion Loss: 0.15 dB max
