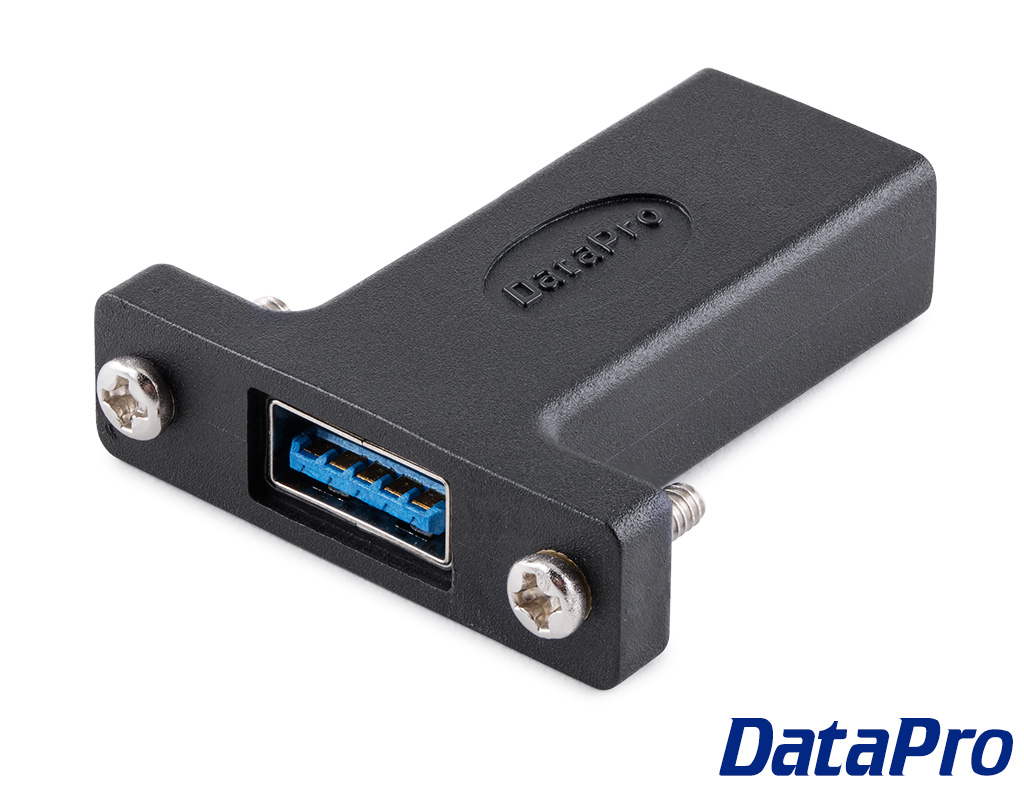

Panel Mount USB 3 Type-A Coupler F-F


Categories:
> Screw-mounted Couplers, USB 3.0 and 3.1 Products 		Panel Mount USB 3 Type-A Coupler F-F


This panel-mount coupler allows you to easily patch a USB 3 Type-A port through a plate, panel, or bulkhead.

CCP-USB3-AA   Coupler Panel-Mount USB 3.0 AA   EACH $ 11.95   995 in stock   Add to Cart

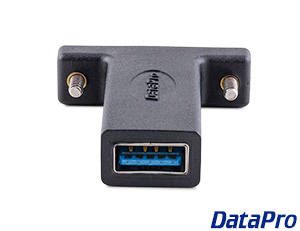

This panel-mount passthrough coupler allows you to easily patch a USB 3 Type-A port through a plate, panel, or bulkhead.  Featuring female ports front and back.



USB A Cutout Dimensions
PDFClick here for PDF version

Drawings & Models:

PartDownloads
CCPUSB3FPDF Drawing (PDF)STEP Model (STEP)


RoHS Compliant
REACH Compliant
Related Products:

Features:

  • Panel-mountable Female USB Type-A connector
  • Includes mounting hardware
  • Gold-plated contacts
  • Shielded to minimize Electromagnetic / Radio Frequency Interference (EMI / RFI)

Specifications:

  • 1x Panel-Mountable Female USB Type-A Connector
  • 1x Female USB Type-A Connector
  • USB 3, supports SuperSpeed USB 5Gb/s
  • Backwards compatible with USB 1.1/2.0
  • RoHS Compliant
  • Embedded 4-40 nuts with mounting screws included
  • Allowable panel depth: 2.5mm (full mating)
  • Recommended screw installation: hand tighten, 2.0 in-lbs maximum torque
