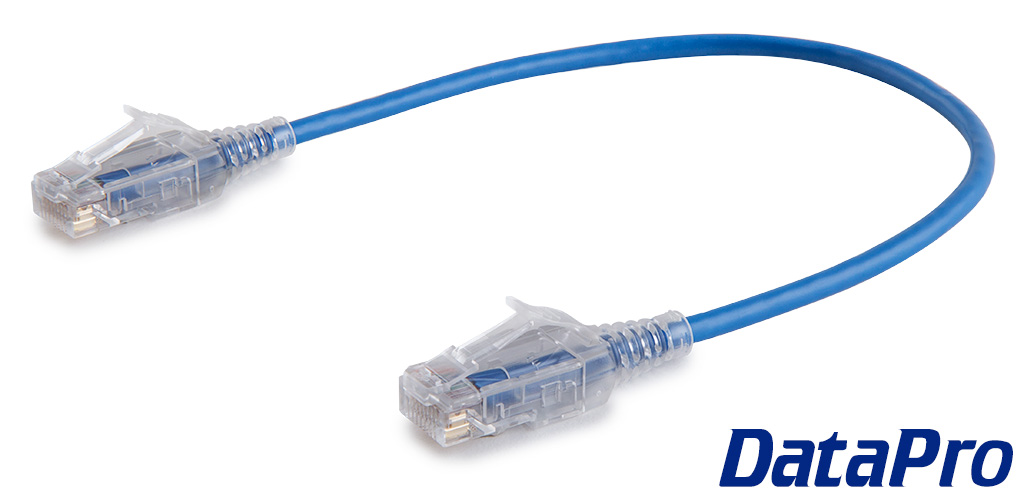

Slim Jacket Ethernet Cat6 Cables

The DataPro 1775T series is a 550MHz RJ45, Cat6 ethernet patch cable that is perfect for tight spaces or dense cable runs. Its slim 28 AWG wire is only 0.15 in, versus a standard 24 AWG Ethernet cable's 0.24".

Designed for use with 10-Base-T, 100-Base-TX, 1000-Base-T Gigabit, and 10000-Base-T 10-Gigabit networks.

Part	Downloads
1775T	Drawing (PDF)	Model (STEP)

Features:

• Connect at 10-Gigabit speeds in tight spaces or dense cable runs
• Backwards-compatible with Cat-5 network standards
• Protected RJ45 clip

Specifications:

• 2x RJ45, Male Cat6 Ethernet connectors
• 550MHz Category-6 rated Ethernet
• CM rated jacket
• Flush boot design
• 0.15in OD (3.81mm) wire
• Flexible stranded 28 AWG wire
• Gold plated contacts
• Operates at 10-Base-T, 100-Base-TX, 1000-Base-T Gigabit, and 10000-Base-T 10-Gigabit speeds
