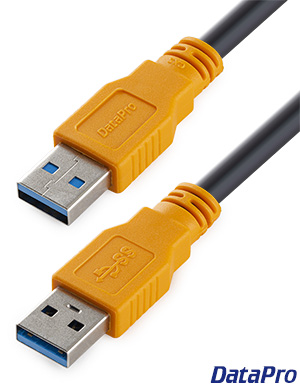

USB 3.0 Super-Speed A/A Debugging Cable


Categories:
> USB 3.0 and 3.1 Products
USB 3.0 Super-Speed A/A Debugging Cable


1696-03C   USB 3.0 A M/M DEBUG Cable   3 ft $ 14.95   562 in stock   Add to Cart
1696-06C   USB 3.0 A M/M DEBUG Cable   6 ft $ 19.95   143 in stock   Add to Cart
1696-10C   USB 3.0 A M/M DEBUG Cable   10 ft $ 24.95   206 in stock   Add to Cart
1696-15C   USB 3.0 A M/M DEBUG Cable   15 ft $ 29.95   125 in stock   Add to Cart

Technical Documents

Download Drawing

The internal wiring of this cable is crossed over, which ensures the correct connections will be achieved in both computer-to-computer and computer-to-device scenarios. Its primary use is driver debugging.

The pinout of this "strict" cable meets the USB 3.0 specification exactly.

The USB 3.0 specification states that pin 1 (VBUS), 2 (D-), and 3 (D+) are not connected. This means that the cable is NOT backwards compatible with USB 2.0 devices.

Please note that this cable is for debugging and testing only. Windows, macOS, and Linux do not support file transfer or networking over a direct USB connection.

Information on USB 3.0 debugging can be found in this very helpful MSDN article.

This part was formerly denoted as "1692E" - you can find our other version of this cable (for plate to device connections) on product page 1692C.


Features:

  • Gold-plated contacts
  • Shielded to minimize Electromagnetic / Radio Frequency Interference (EMI / RFI)


Specifications:

  • 2x Male USB Type-A Connectors
  • USB 3.0, supports SuperSpeed USB 5Gb/s
  • Aluminum/Mylar Foil Wrap + Braided Shielding and Drain Wire
  • Wire Gauge 28 & 24 AWG
  • RoHS Compliant
