VGA Video Signal Splitter 'Y'

> VGA Cables, Video Splitters
VGA Video Signal Splitter 'Y'
The DataPro 1131-Y Y splitter is a VGA/SVGA video signal splitter. This adaptor cable allows the user to view dual VGA or SVGA monitors at the same time.

1131-Y   VGA Video Signal Y Splitter   9IN $ 19.95   38 in stock   Add to Cart

Technical Documents

Download Drawing

The DataPro 1131-Y cable is a VGA/SVGA video signal splitter. This adaptor cable allows the user to view two VGA or SVGA monitors at the same time from one on-board VGA video card.

This adaptor cable has a male DH15 connector at the CPU end, and twin Female DH15 socket connectors at the monitor end.

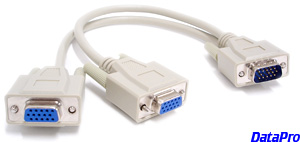

There are two styles of this cable, a 'Y' and a 'T'. The 'Y' model is split into two cables, like shown in the picture. The VGA 'T' model splitter is a single cable with a T-shaped split at the end.

The stock length is approximately 9 inches.

This type of splitter is a space-conscious and economical way to share monitor outputs, however, image quality can be lost at higher resolutions and/or greater lengths. For viewing on two or more monitors at longer distances, we recommend our MSV series, which perform VGA signal splitting and boosting for better performance.

RoHS Compliant
REACH Compliant

Related Products:


  • Input: 1x Male DH15 VGA Connector, No Pin #9
  • Output: 2x Female DH15 VGA Connectors
  • Wire Gauge 28 & 24 AWG
  • RoHS Compliant
  • CL2 Rated
  • Triple-shielded mini-coax wire
  • Aluminum/Mylar Foil Wrap + Braided Shielding and Drain Wire
