Ethernet Cat5E Crossover Cable


1776-03C   Ethernet Cat5e Crossover Cable   3 ft $ 5.95   99 in stock   Add to Cart
1776-06C   Ethernet Cat5e Crossover Cable   6 ft $ 6.95   2 in stock   Add to Cart
1776-10C   Ethernet Cat5e Crossover Cable   10 ft $ 7.95   3 in stock   Add to Cart
1776-00C   Ethernet Cat5e Crossover Cable
Custom build at $10.00 + $0.30 per foot.
  Add to Cart

Technical Documents
I agree to the Terms of Service.

Download Drawing

The DataPro 1776 series cable is a Category-5E rated 100 Mhz network crossover cable for use with modern computer networks and internets. The wirings between the two connectors have crossed data channels, allowing two computers to directly interface each other without an intermediary hub or switch.

This type of cable assembly was essential in former times, but most modern network-connected equipment features crossover detection that will automatically switch the communication pins based on network negotiations. As such, crossover cables are not as popular or relevant as they once were, but in case you need one, here they are!

Both connections on this assembly are RJ45 male (plug) connectors, and this is compliant with Cat5e speeds on 10-Base-T and 10/100 networks. They also function perfectly well on Gigabit networks.

All connectors are wired EIA/TIA 568-B crossover (direct-connect) unless otherwise specified by customer.

We also have standard straight-through Ethernet cables available.

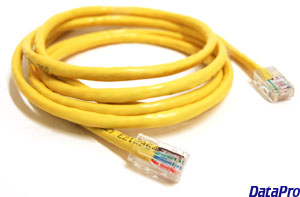

Our stock crossover cables are YELLOW in color to distinguish them from regular straight-through ethernet cables (usually blue, white, or gray), but we will gladly build this cable using any of our colors: Red, Orange, Yellow, Green, Blue, Purple, Black, Grey, and White.

We also build this cable in any length you require.

The distance limitation for this type of cable is approximately 100 feet - shorter than for a normal, straight-through patch cable.
