IP67 Waterproof Panel Mount Ethernet Cat6 Shielded Female-Male Extension Cable


Categories:
> IP-Rated Rugged Cables, Panel Mount Ethernet Cables
IP67 Waterproof Panel Mount Ethernet Cat6 Shielded Female-Male Extension Cable

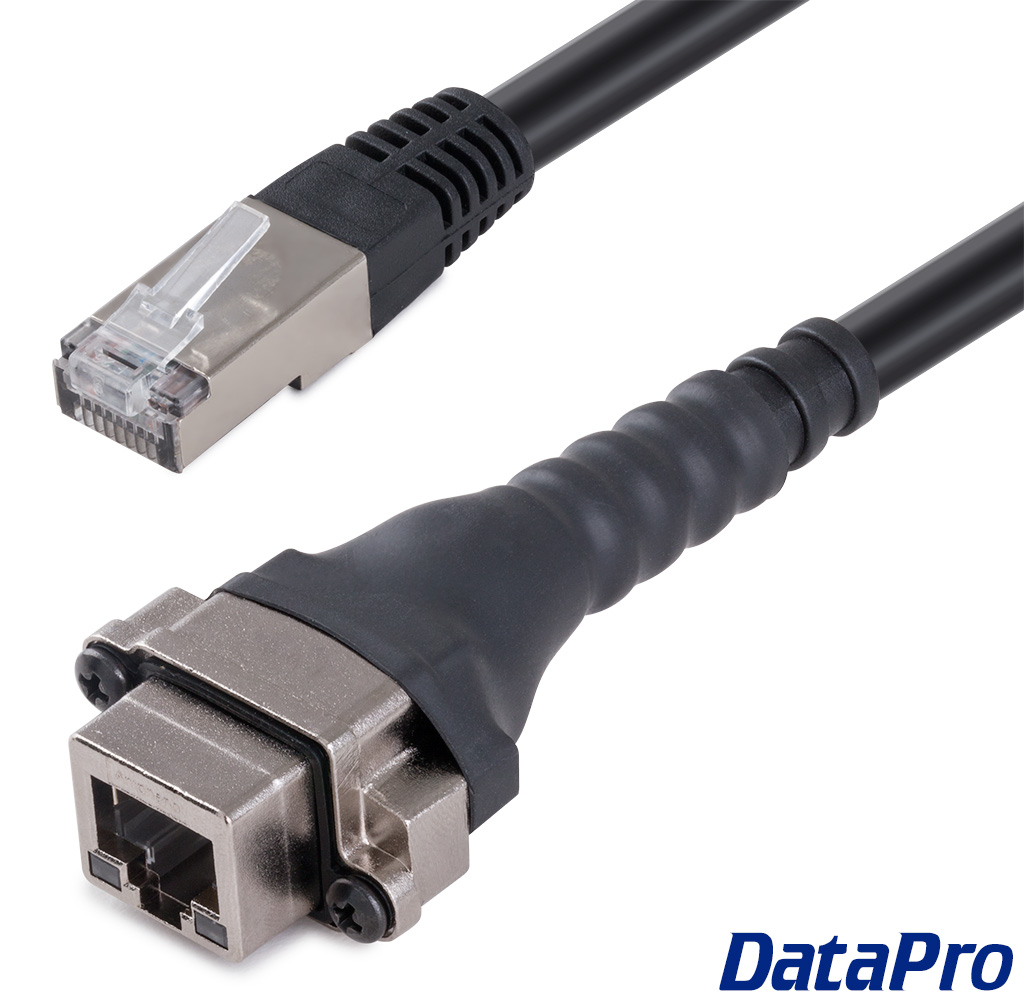

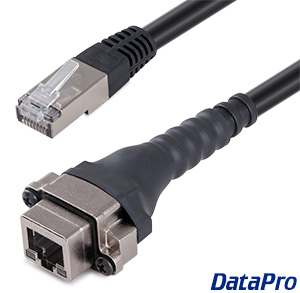

This waterproof and dustproof Cat6 Ethernet cable features an IP67 rated female panel-mount RJ45 connector on one end, shielded wire, and a shielded male RJ45 connector on the other.

1771-01W   Cat 6 Waterproof Panel Mnt Ext   1 ft $ 54.95   21 in stock   Add to Cart
1771-02W   Cat 6 Waterproof Panel Mnt Ext   2 ft $ 55.95   37 in stock   Add to Cart
1771-03W   Cat 6 Waterproof Panel Mnt Ext   3 ft $ 56.95   5 in stock   Add to Cart
1771-00W   Cat 6 Waterproof Panel Mnt Ext
Custom build at $54.00 + $1.00 per foot.
Some custom products may not be REACH compliant.
  Add to Cart

As an alternative to bulky waterproof connectors that require a screw-on cap, ours is waterproof even when directly exposed to the elements. Consisting of a watertight connector and gasket, it creates a seal around its cutout.

This cable's rugged construction includes a die cast metal panel mount connector, shielded Ethernet wire, and a shielded male RJ45 connector.

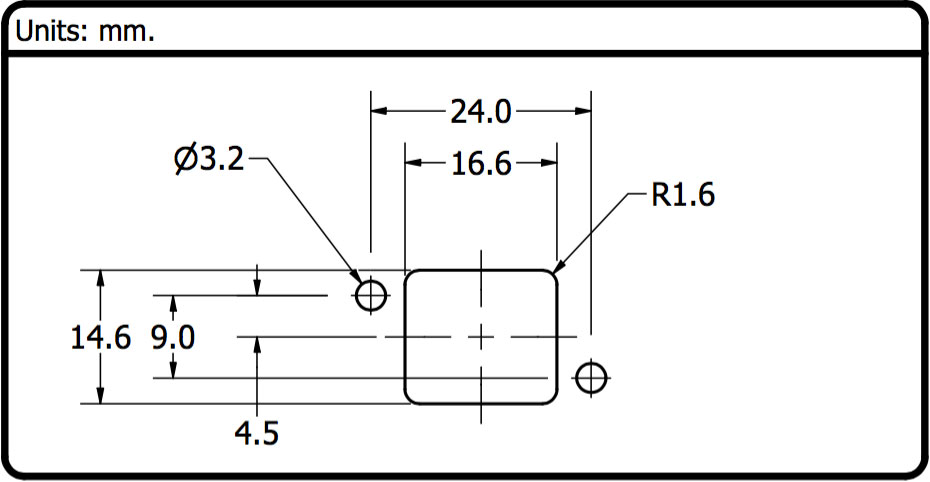

Waterproof Panel Mount USB Connector Diagram

This part's IP67 rating means it can be submerged up to 1m (3.3f). As opposed to IP68, which covers a depth greater than 1m. Perfect for extending Ethernet ports to a flying bridge, marine dash panel, drone base station, or anywhere else that may experience splashing and light immersion. Also useful in industrial and manufacturing applications.


PDFClick here for PDF version


Drawings & Models:

PartDownloads
1771WPDF Drawing (PDF)STEP Model (STEP)


RoHS Compliant
CL2 In-Wall Rated
IPC Compliant
Made in the USA

Related Products:

Features:

  • RJ45 socket is waterproof and dustproof even without a cover
  • Shielded male RJ45 connector
  • Shielded CL2-rated Ethernet cable
  • Compatible with standard RJ45 Ethernet connectors
  • Available in custom lengths up to 328ft (100m)
  • 4-40 mounting screws included


Specifications:

  • Shielded 550MHz 26AWG Category-6 rated Ethernet wire
  • Compatible with 10-Base-T, 100-Base-T, 1000-Base-T Gigabit, and 10G-Base-T 10-Gigabit networks.
  • RoHS compliant
  • CL2 rated
  • IP67 rated female panel connector (Submersion up to 1m, or 3.3ft)
  • Embedded 4-40 nuts with mounting screws included
  • Allowable panel depth: 2.5mm (full mating)
  • Recommended screw installation: hand tighten, 2.0 in-lbs maximum torque
