Panel-Mount Ethernet RJ45 Cat6 Extension Cable


Categories:
> Patch Cables, Panel Mount Ethernet Cables

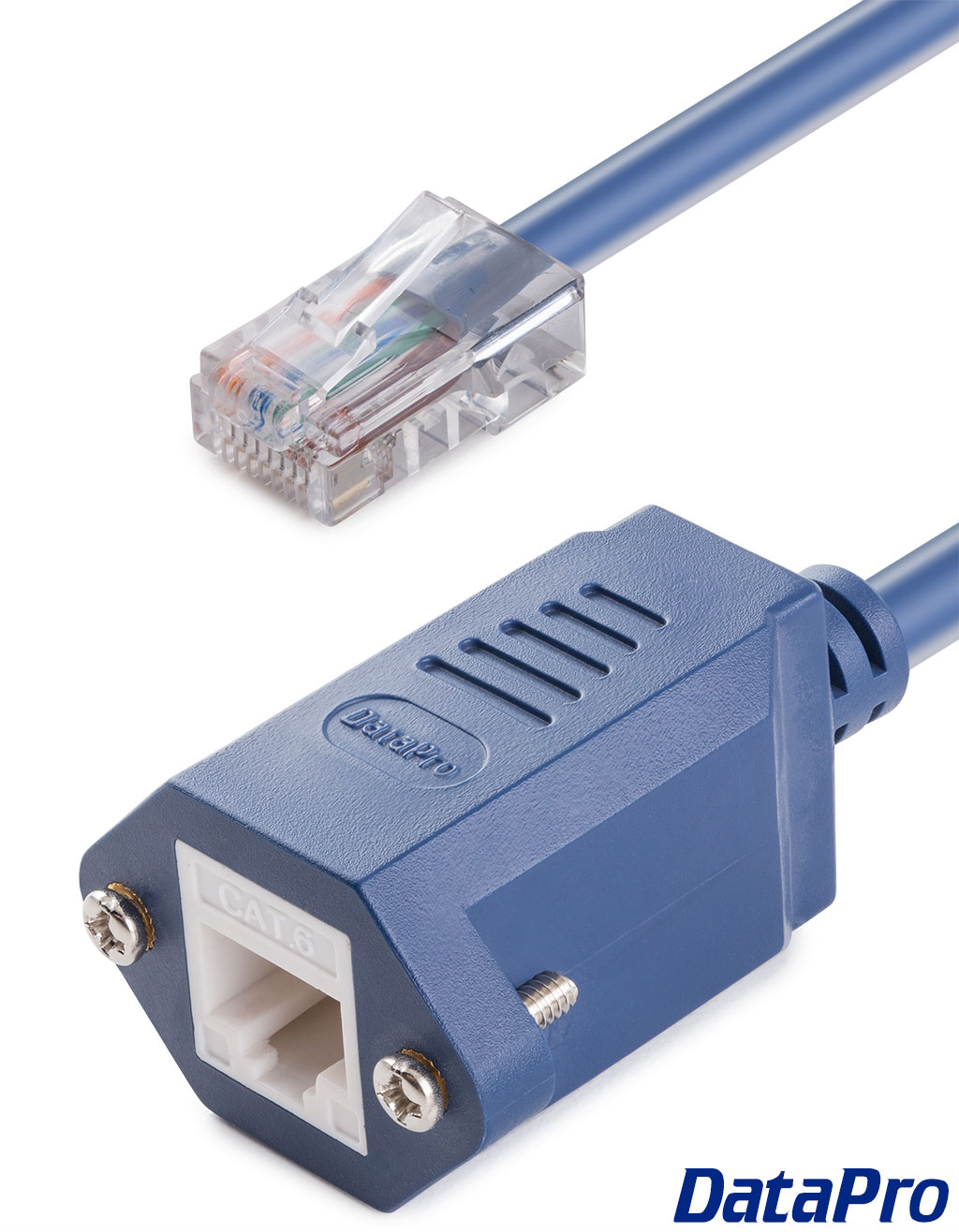

Panel-Mount Ethernet RJ45 Cat6 Extension Cable


Offer network access anywhere with our panel-mount 550MHz Category-6 rated Ethernet extension cables. Features a female RJ45 connector on the panel end, and a standard male RJ45 connector on the other.

1771-01C   Ethernet CAT-6 Panel-Mount Ext   1 ft $ 7.95   1385 in stock   Add to Cart
1771-02C   Ethernet CAT-6 Panel-Mount Ext   2 ft $ 8.95   758 in stock   Add to Cart
1771-03C   Ethernet CAT-6 Panel-Mount Ext   3 ft $ 9.95   1885 in stock   Add to Cart
1771-04C   Ethernet CAT-6 Panel-Mount Ext   4 ft $ 10.95   332 in final testing!   Backorder
1771-06C   Ethernet CAT-6 Panel-Mount Ext   6 ft $ 11.95   2242 in stock   Add to Cart
1771-10C   Ethernet CAT-6 Panel-Mount Ext   10 ft $ 15.95   2635 in stock   Add to Cart
1771-15C   Ethernet CAT-6 Panel-Mount Ext   15 ft $ 19.95   192 in stock   Add to Cart
1771-25C   Ethernet CAT-6 Panel-Mount Ext   25 ft $ 21.95   324 in stock   Add to Cart
1771-00C   Ethernet CAT-6 Panel-Mount Ext
Custom build at $20.00 + $0.50 per foot.
Some custom products may not be REACH compliant.
  Add to Cart

Technical Documents

Download Drawing

Download 3D Model

This 10/100/1000/10000 550MHz panel-mount Ethernet cable is the perfect way to extend Cat6 to any plate, panel, or bulkhead. Requires no termination or punch-downs, and includes panel mounting hardware. Available in custom lengths.

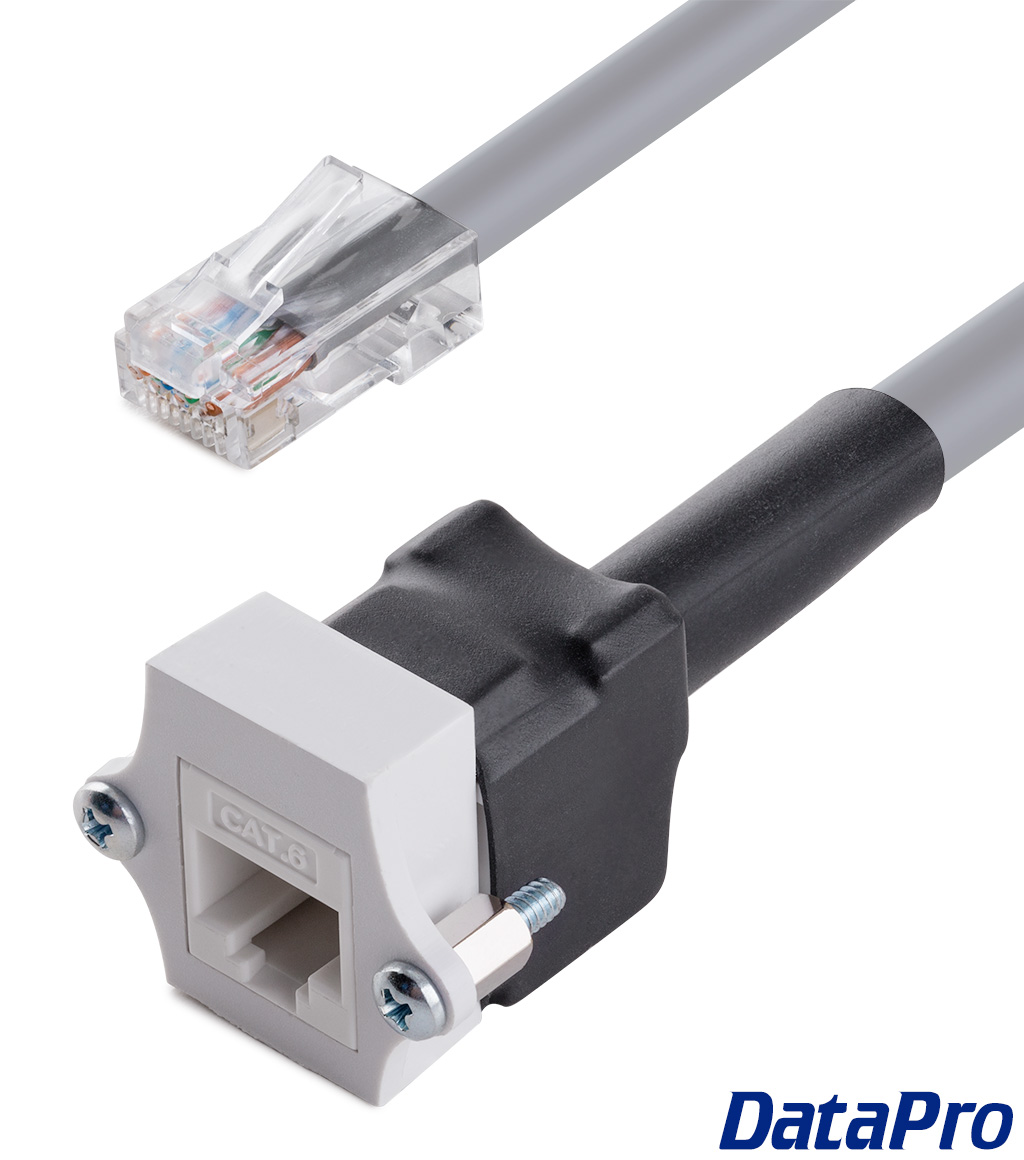

Custom Lengths: Custom lengths up to 25ft (7.62m) will have the same appearance as pictured above, and are CL2-rated. Lengths over 25ft (7.62m) are unmolded (photo), and do not use CL2-rated wire by default. If you have special requirements for custom cables, just contact us!





Features:

  • Panel or bulkhead-mountable molded PVC hood
  • CL2 rated for in-wall use
  • Embedded 4-40 nuts with mounting screws included
  • Compatible with all DataPro Ethernet wall plates and panels


Specifications:

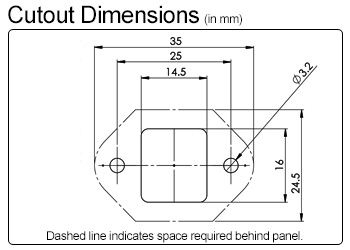

  • Allowable panel depth: 4.5mm (full mating)
  • Recommended screw installation: hand tighten, 2.0 in-lbs maximum torque
  • 550MHz Category-6 rated Ethernet.
  • Compatible with 10-Base-T, 100-Base-T, 1000-Base-T Gigabit, and 10G-Base-T 10-Gigabit networks.
  • Backwards-compatible with Cat-5 and Cat-5e.


RoHS Compliant
REACH Compliant
CL2 In-Wall Rated
IPC Compliant
