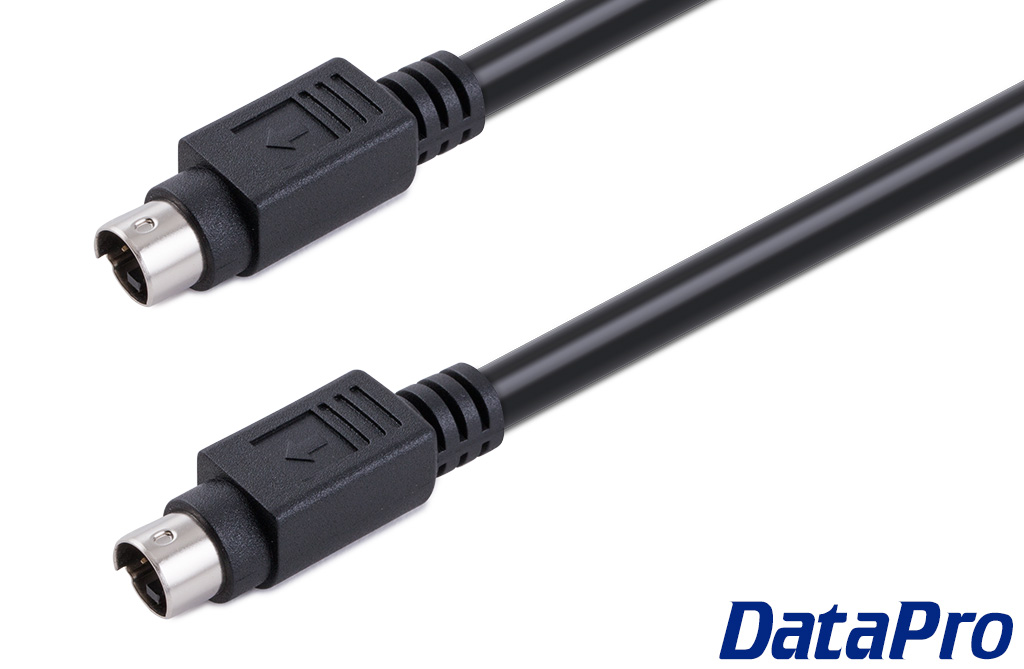

S-Video Cable Coaxial External
DataPro's high-quality S-Video cables use shielded coaxial wire for supreme signal quality and noise prevention, offering the sharpest and brightest image available (even at one hundred or more feet). If you've still got a use for the old reliable S-Video, we've still got them in stock.

1165-02C   S-Video Coaxial Cable   2 ft $ 16.95   77 in stock   Add to Cart
1165-03C   S-Video Coaxial Cable   3 ft $ 17.95   10 in stock   Add to Cart
1165-06C   S-Video Coaxial Cable   6 ft $ 19.95   74 in stock   Add to Cart
1165-10C   S-Video Coaxial Cable   10 ft $ 27.00   10 in stock   Add to Cart
1165-15C   S-Video Coaxial Cable   15 ft $ 35.00   5 in stock   Add to Cart
1165-25C   S-Video Coaxial Cable   25 ft $ 39.00   55 in stock   Add to Cart
1165-50C   S-Video Coaxial Cable   50 ft $ 59.00   2 in stock   Add to Cart
1165-00C   S-Video Coaxial Cable
Custom build at $30.00 + $1.00 per foot.
  Add to Cart

Technical Documents
I agree to the Terms of Service.

Download Drawing

Ah, S-Video, that takes me back. The days of DVD/VCR combo players and 100-pound CRT televisions, the days of blank VHS tapes and tangles of red and white RCA audio cables. Harking back to simpler times (with terribly-more-complex setups), this S-Video cable is perfect for connecting a video source and display from times gone by.

This cable is made of 75 ohm mini-coax video wire, the ideal method of carrying analog video with minimal loss. These types of assemblies have been built upwards of 200ft without trouble, although many factors will contribute to the overall quality.

S-Video was typically used in high-end video applications and equipment, and on most camcorders prior to the widespread implementation of FireWire and then HDMI. This classic video interface has segregated Luma/Chroma channels to provide a more accurate picture than the all-in-one approach of composite, and therefore requires more pins. Each end of this cable has a 4-pin male Mini-Din connector, aka MD04M, which is the same size as a PS/2 connector but with only four pins instead of six.

For more information about video types and signals, see our Video White Paper.

Custom lengths are available, so you can have S-Video in any length you desire.
