FireWire Panel-Mount to Header

> FireWire Cables, Panel-Mount Cables
FireWire Panel-Mount to Header
Build a FireWire 400 port directly into your case or enclosure with DataPro's FireWire motherboard cable. With header pins for direct termination to PCB, plus a molded mounting hood, this cable will install FireWire wherever you want it.

1390-01C   FireWire Panel-Mount to Header   1 ft $ 22.95   5 in stock   Add to Cart
1390-02C   FireWire Panel-Mount to Header   2 ft $ 24.95   4 in stock   Add to Cart
1390-03C   FireWire Panel-Mount to Header   3 ft $ 25.95   2 in stock   Add to Cart

Technical Documents

Download Drawing

Download 3D Model

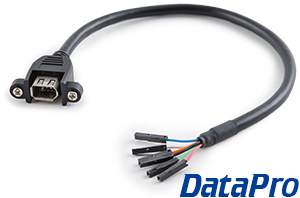

The 1390 series cable is an IEEE-1394 6-pin female to 5 individual female header connectors.

These cables are an ideal method to add FireWire ports for easy removal of portable devices, especially in OEM enclosures and integrated systems.

Shielding includes both a foil wrap and a braid wrap. This is the highest grade of shielding available for a FireWire cable, and ensures the highest speeds with minimal noise and signal loss.

This cable is IEEE-1394A (iLink) compliant, for speeds up to 480 Mbps


  • Includes all necessary hardware to mount on a plate, panel, or bulkhead
  • Foil and braid wrap shielding
  • Reinforced panel mount female connector
  • Individual header pins for maximum flexibility
  • Includes pinout


  • Allowable panel depth: 2.5mm (full mating)
  • IEEE 1394 and 1394A compliant
  • Supports speeds up to 480 Mbps

RoHS Compliant
REACH Compliant
CL2 In-Wall Rated
