IP67 Waterproof Panel-Mount USB Micro-B 2.0 Male-Female Extension Cable


Categories:
> IP-Rated Rugged Cables, Panel-Mount Micro USB-B Cables

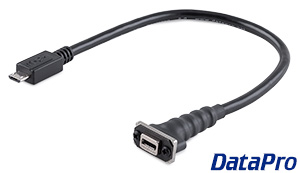

IP67 Waterproof Panel-Mount USB Micro-B 2.0 Male-Female Extension Cable
This waterproof and dustproof USB Micro-B extension cable features a panel-mount IP6 rated female Micro-B connector on one end, and a male Micro-B connector on the other.

1584-00W   USB 2.0 Micro Waterproof P/M
Custom build at $30.00 + $1.00 per foot.
Some custom products may not be REACH compliant.
  Add to Cart

Technical Documents

Download Drawing

Download 3D Model

As an alternative to bulky waterproof USB connectors that require a screw-on cap, this cable features a connector that remains waterproof even when directly exposed to the elements. Consisting of a watertight connector and gasket, it creates a seal around its cutout.

This part's IP67 rating means it can be submerged up to 1m (3.3f). As opposed to IP68, which covers a depth greater than 1m. Perfect for extending USB ports to a flying bridge, marine dash panel, motorcycle, or anywhere else that may experience splashing and light immersion. Also useful in industrial and manufacturing applications.

Please note that if you would like to extend your USB connection more than 15 feet from source to device, you'll need to use an active USB booster cable or active USB booster.


Features:

  • USB socket is waterproof and dustproof even without a cover
  • Standard USB Micro-B connectors
  • Custom length, available up to 15ft (or longer with boosters)
  • USB 1.1/2.0 High-Speed Compatible
  • #2-56 Mounting screws included


Specifications:

  • USB 1.1/2.0 High-Speed Compatible
  • Max speed 480 Mb/s
  • RoHS compliant
  • CL2 rated
  • #2-56 Mounting screws included

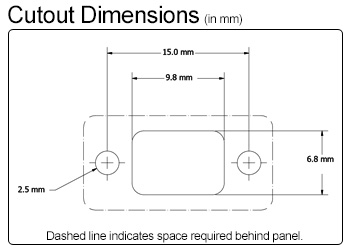

  • Allowable panel depth: 2.5mm (full mating)
  • Recommended screw installation: hand tighten, 2.0 in-lbs maximum torque
  • IP67 rated (Submersion up to 1m, or 3.3ft)


RoHS Compliant
REACH Compliant
CL2 In-Wall Rated
IPC Compliant
Made in the USA
