IP67 Waterproof Panel Mount USB 3 Type-A M-F Extension Cable


Categories:
> Panel-Mount USB-A Cables, USB 3.0 and 3.1 Products, IP-Rated Rugged Cables

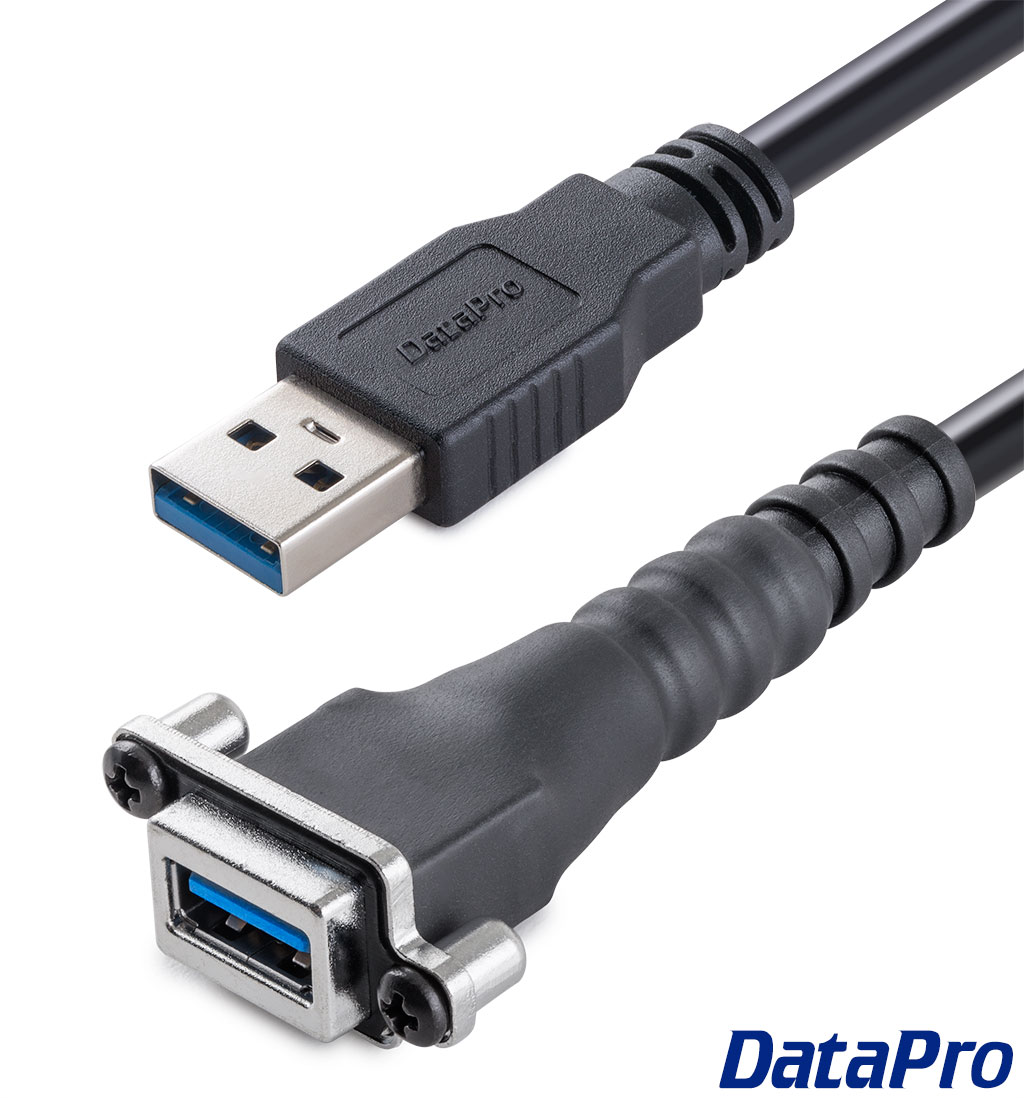

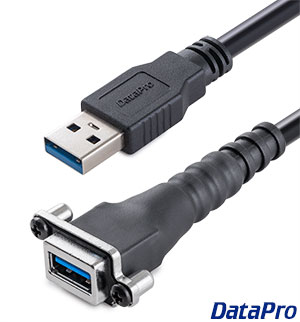

IP67 Waterproof Panel Mount USB 3 Type-A M-F Extension Cable
This waterproof and dustproof USB 3.0 panel-mount cable features an IP67-rated female USB Type-A connector on one end, and a male USB Type-A connector no the other.

1698-00W   USB 3.0 A Waterproof Panel Mnt
Custom build at $40.00 + $1.00 per foot.
Some custom products may not be REACH compliant.
  Add to Cart

Technical Documents

Download Drawing

Download 3D Model

This waterproof USB 3 panel-mount cable features IP67 water and dust protection. Provides a waterproof panel-mount female USB Type-A port on one end, and a standard male USB Type-A connector on the other. Available in custom lengths.

This part's IP67 rating means it can be submerged up to 1m (3.3f). As opposed to IP68, which covers a depth greater than 1m. Perfect for extending USB ports to a flying bridge, marine dash panel, motorcycle, or anywhere else that may experience splashing and light immersion. Also useful in industrial and manufacturing applications.

Please note that if you would like to extend your USB connection more than 15 feet from source to device, you'll need to use an active USB booster cable or active USB booster.


Features:

  • Panel-mountable Female USB Type-A connector
  • CL2 rated for in-wall use
  • Includes mounting hardware
  • Gold-plated contacts
  • Shielded to minimize Electromagnetic / Radio Frequency Interference (EMI / RFI)
  • IPC certified production
  • USB socket is waterproof and dustproof even without a cover


Specifications:

  • 1x Panel-Mountable Waterproof Female USB Type-A Connector
  • 1x Male USB Type-A Connector
  • USB 3.0, supports SuperSpeed USB 5Gb/s
  • Backwards compatible with USB 1.1/2.0
  • Aluminum/Mylar Foil Wrap + Braided Shielding
  • RoHS Compliant
  • CL2 Rated
  • IP67 rated (Submersion up to 1m, or 3.3ft)
  • Embedded 4-40 nuts with mounting screws included

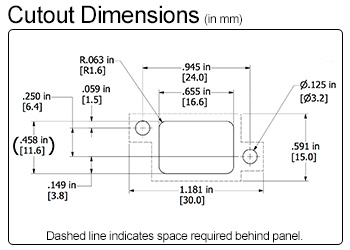

  • Allowable panel depth: 2.5mm (full mating)
  • Recommended screw installation: hand tighten, 2.0 in-lbs maximum torque


RoHS Compliant
REACH Compliant
CL2 In-Wall Rated
IPC Compliant
Made in the USA
